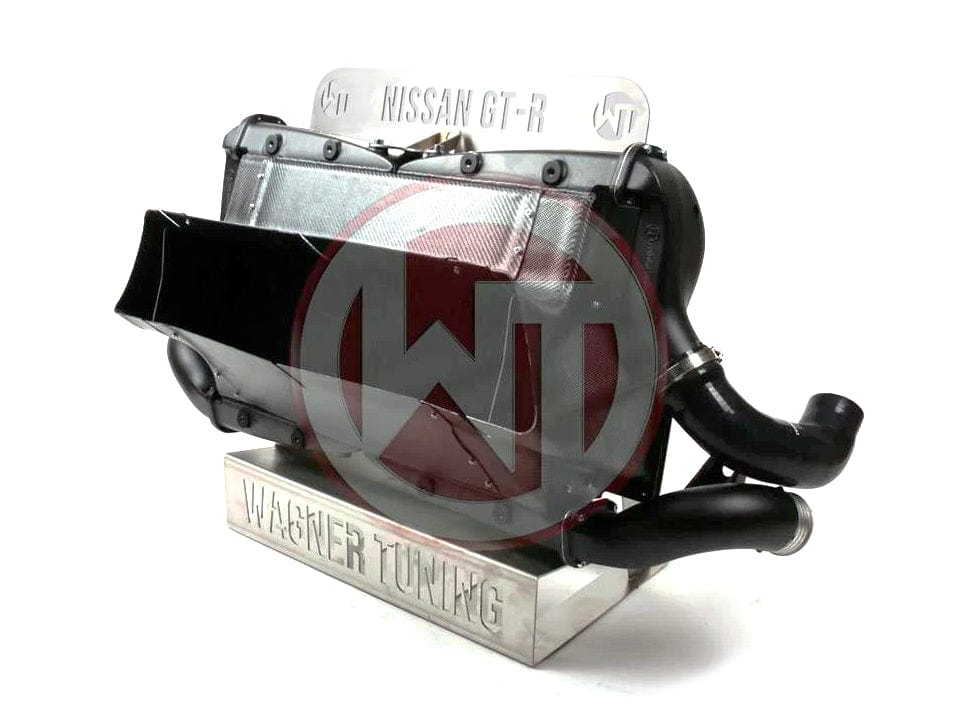

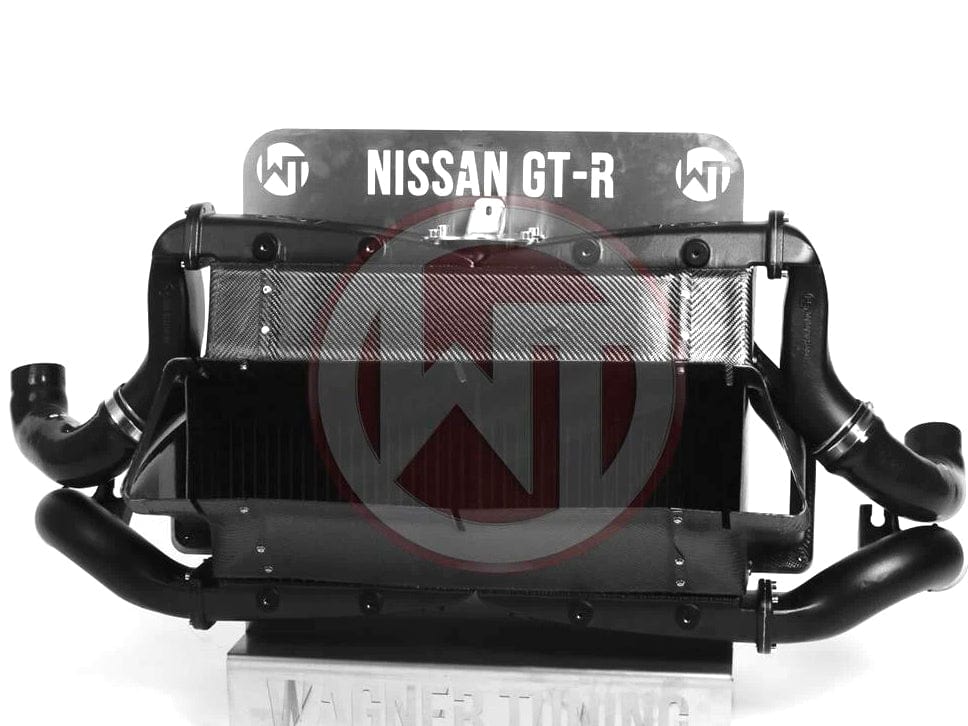

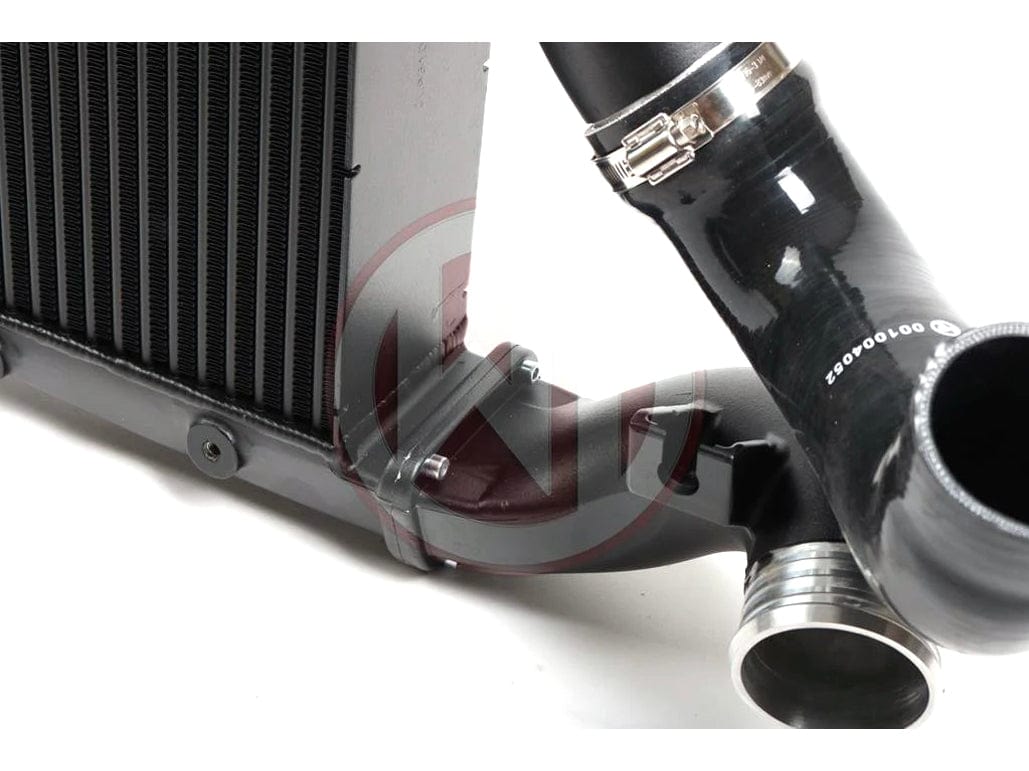

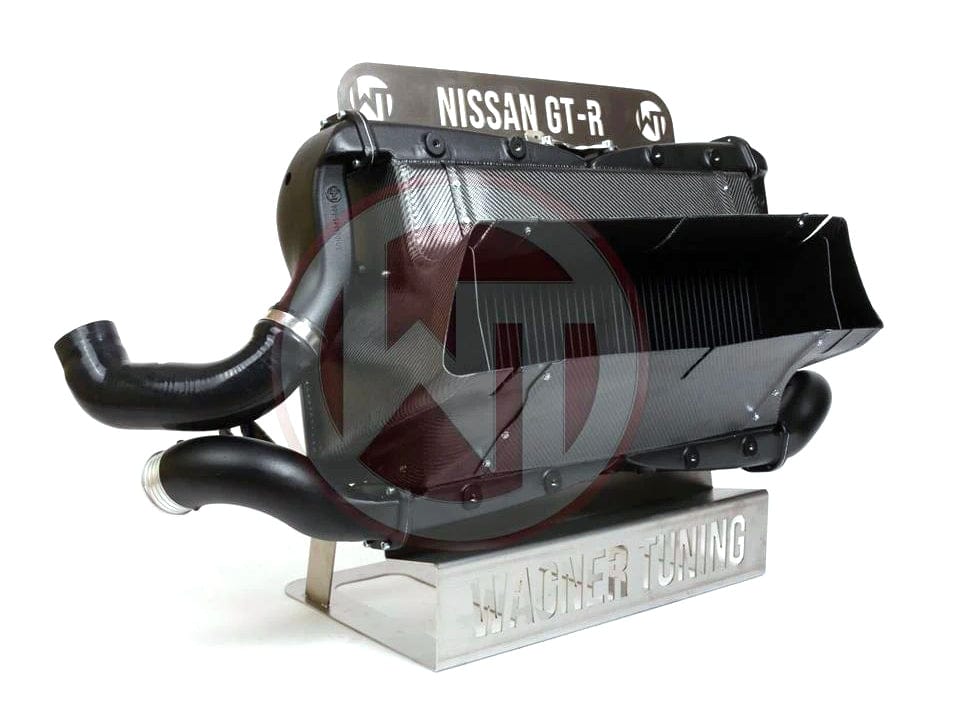

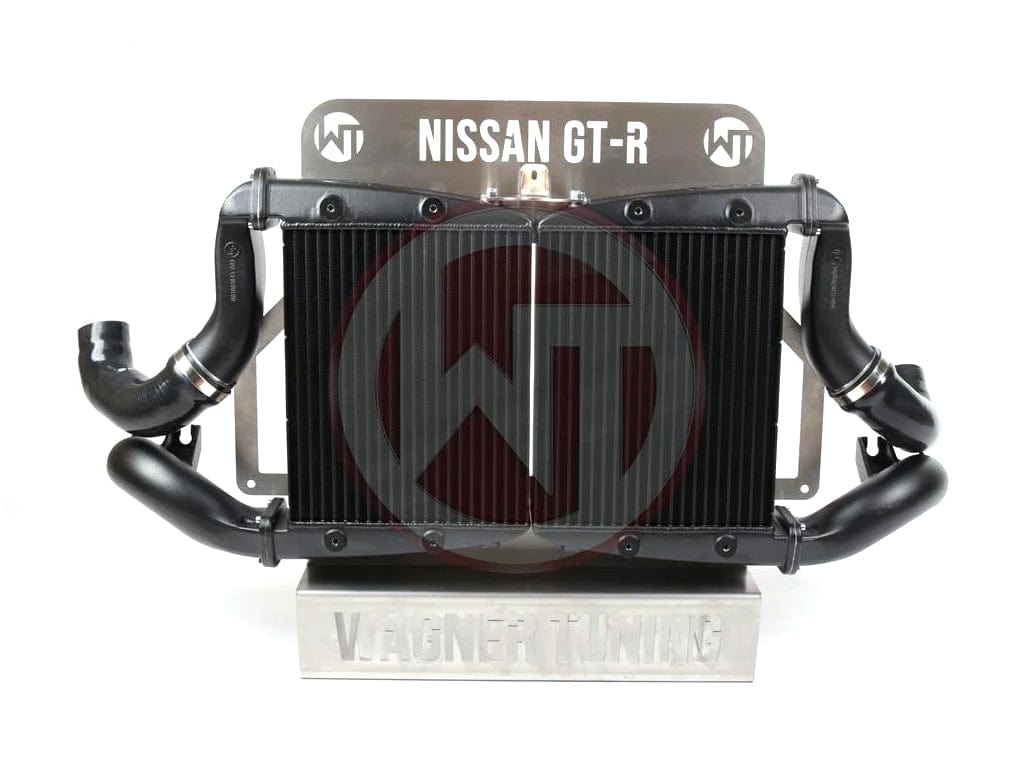

This competition intercooler for the Nissan GTR R35 has the following core size 2x 360mm x 294mm x 110mm= 23300cm³, providing a 76% larger frontal area and 94% more volume compared to the original intercooler.

Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove OEM bottlenecks, resulting in increased flow rating and charge cooling properties. The weight of the intercooler is 2x 9.1kg. Constructed using the highest quality Tube Fin intercooler cores combined with cast aluminium end tanks optimized in our CAD systems. Flow analyses and simulations were created to optimise the design for best possible internal airflow.

This unique intercooler kit includes, developed in the CAD free form end tanks made of cast aluminium for optimal internal airflow and a compressive strength of up to 6 bar (tested). Supplied with bespoke carbon air shroud to ensure optimum airflow to the intercooler, as well as upgrade silicone hoses with enlarged cross-sectional area.

This intercooler kit is the best choice when it comes to performance gains and low intake temperatures. Anti corrosion protective coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation and fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.

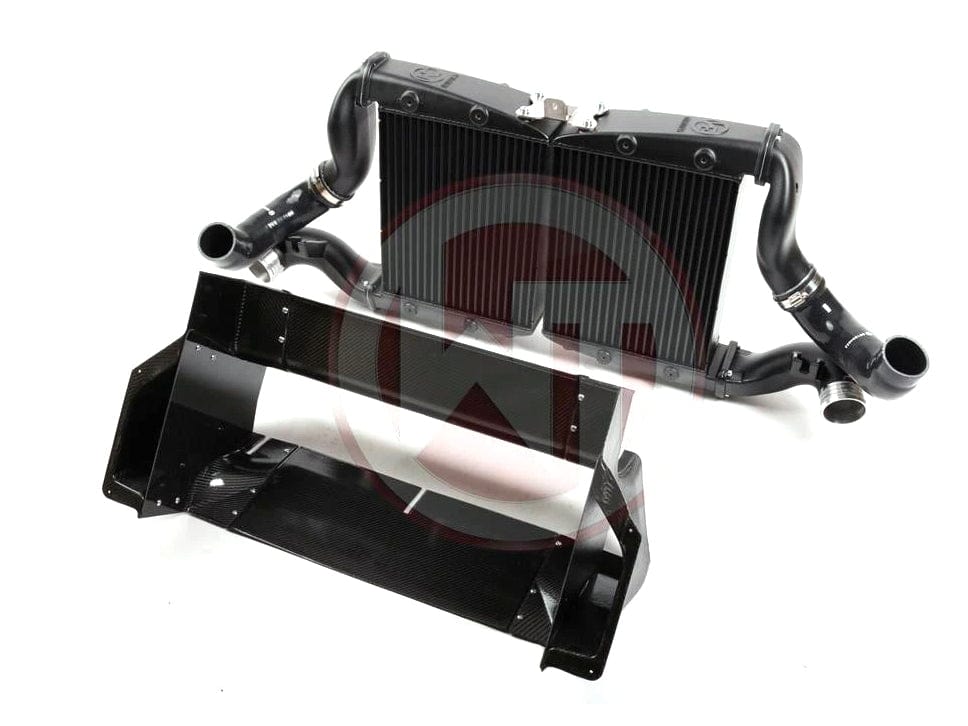

2 Intercoolers painted black
4 Aluminium connectors
2 Silicon hoses
1 Carbon air shroud
1 Mounting material
1 Installation instructions

Nissan GT-R 2011-2012 390KW/530PS
Nissan GT-R 2012-2016 404KW/550PS

200001106

Manufactured by

Wagner

Warranty

ML Performance Lifetime Warranty
