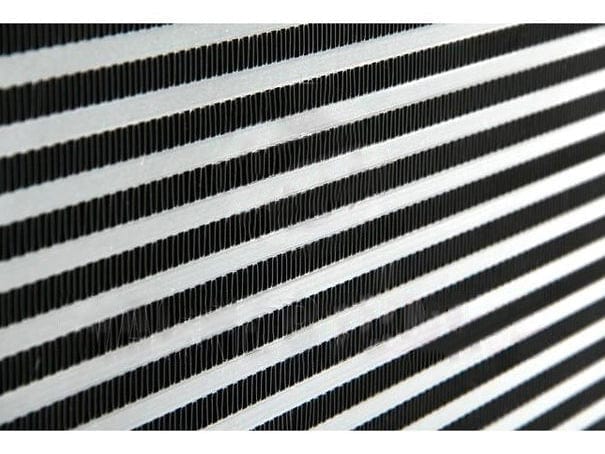

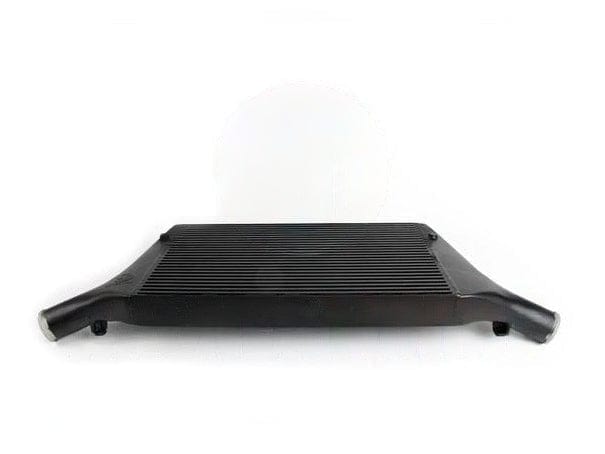

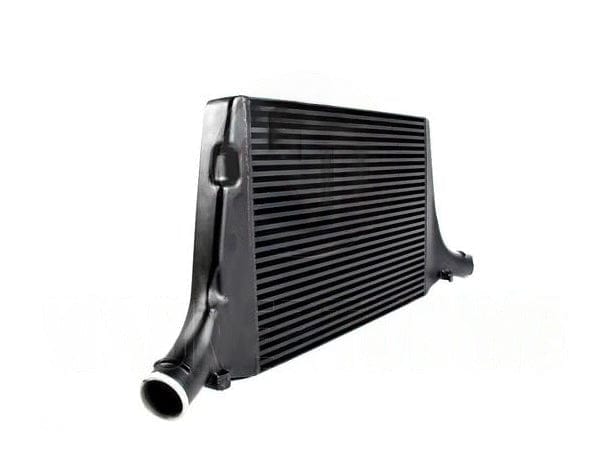

This Competition Intercooler has the following core size (610mm x 440mm x 65mm), providing 178% more frontal area and 158% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improving the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Despite of it´s size the weight of the complete intercooler is only 9,1kg. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow.
The inlets and outlets of the intercooler have been increased to Ø 67mm, so this kit comes with reinforced silicone hoses. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM intercooler. Anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% perfect fit. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.

Wagner-Tuning Competition Core with high cooling performance and light weight (9,1KG)
CAD designed Cast Freeform shaped Endtanksfor best possible Internal Airflow
178% more cooling surface and 158% more volume (Core dimensions 610mm x 440 mm x 65mm)

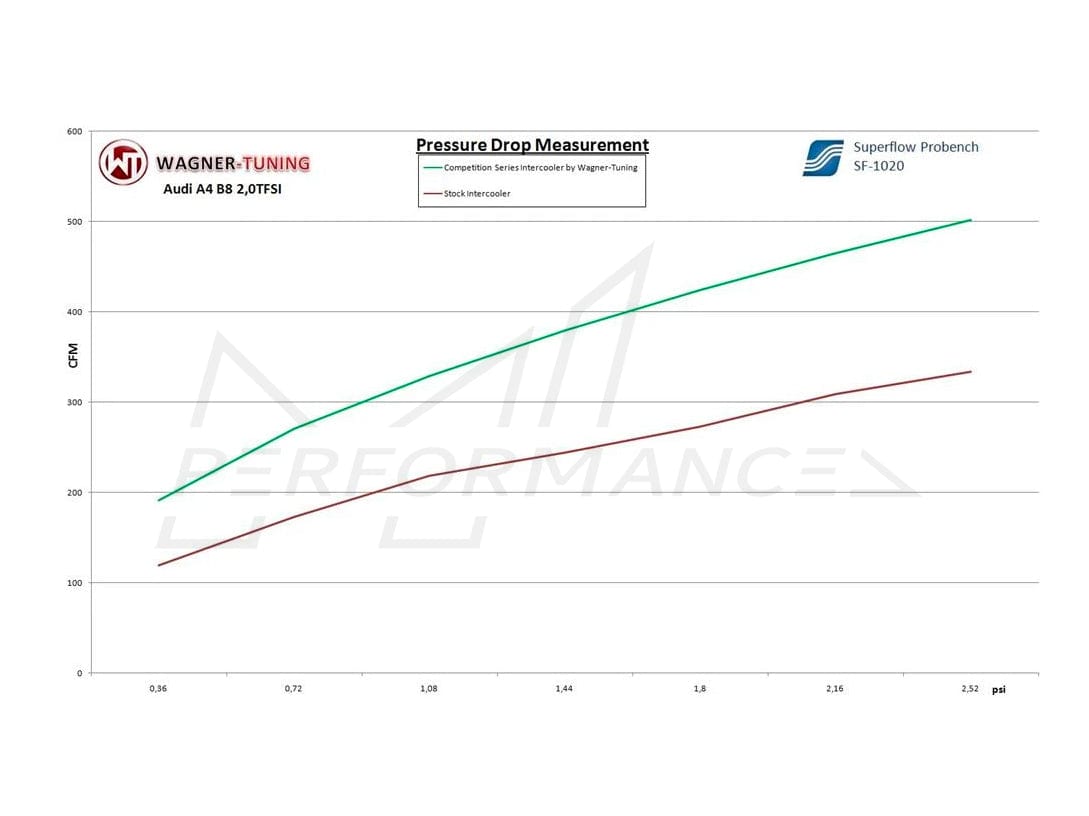

a lot less pressure drop then OEM Intercooler
Anti Corrosion protective Coating with perfect thermal heat dissapating character
optimal cooling with clearly more power
kit is ready for installation, 100% perfect fit
OEM replacement

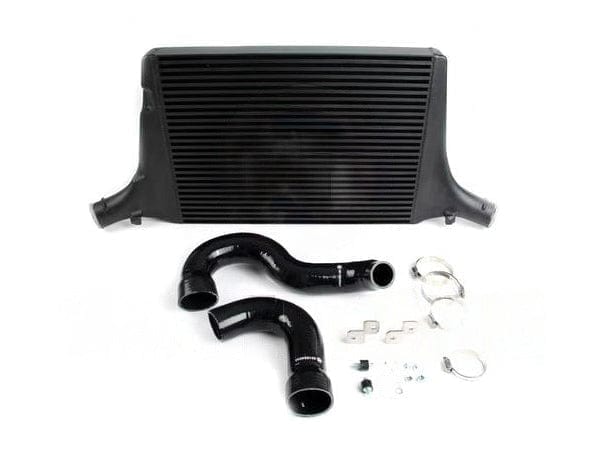

1 Charge air cooler
2 Silicone Hoses
4 hose clamps
1 mounting material
1 Installation instructions

• Audi A4 B8.5 2,0 TDI 2013-2015 (MKB: CJCA, CJCB, CMFA, CGLC, CGLD, CJCC, CMGB, CJCD)*
• Audi A4 B8.5 Allroad 2,0 TDI 2013-2015 (MKB: CJCA, CJCB, CMFA, CGLC, CGLD, CJCC, CMGB, CJCD)*
• Audi A5 B8.5 2,0 TDI 2013- (MKB: CJCA, CJCB, CMFA, CGLC, CGLD, CJCC, CMGB, CJCD)*
• Audi A5 B8.5 Sportback 2,0 TDI 2013- (MKB: CJCA, CJCB, CMFA, CGLC, CGLD, CJCC, CMGB, CJCD)*

* doesn't fit directly to vehicles with an additional cooler for the dynamic-steering. Recommendation on the implementation in the installation instructions.

200001134

Manufactured by

Wagner

Warranty

ML Performance Lifetime Warranty
