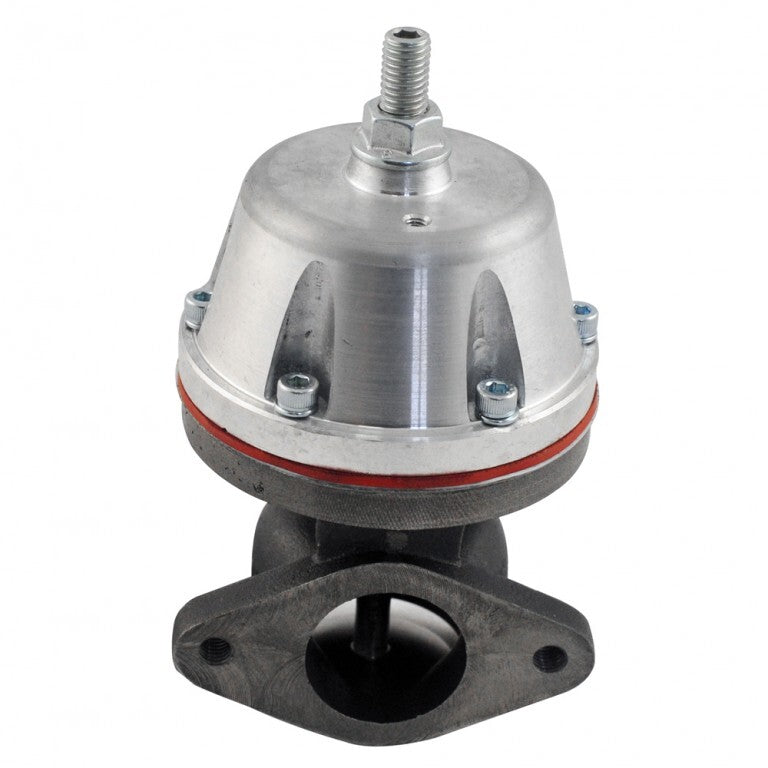

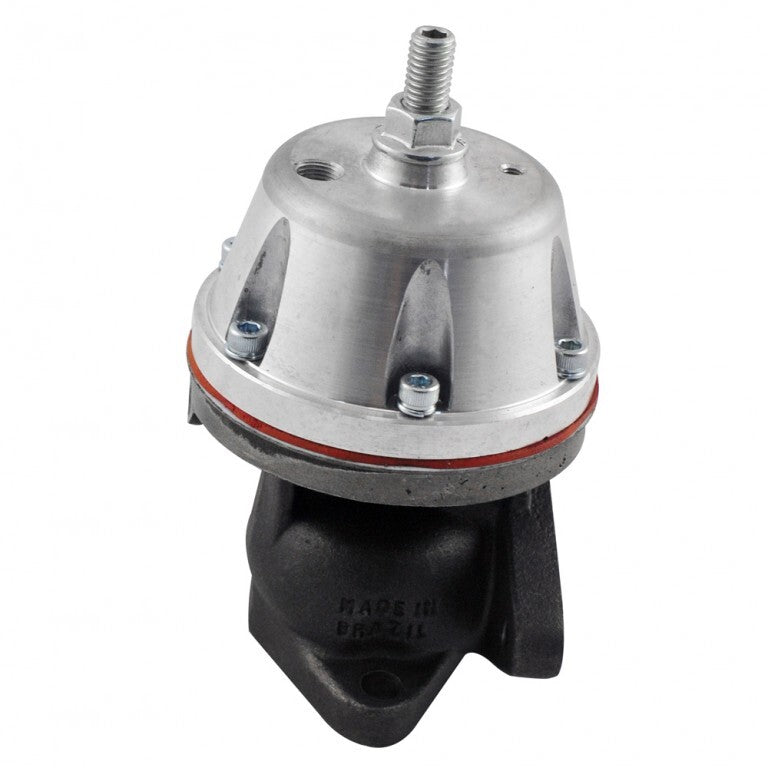

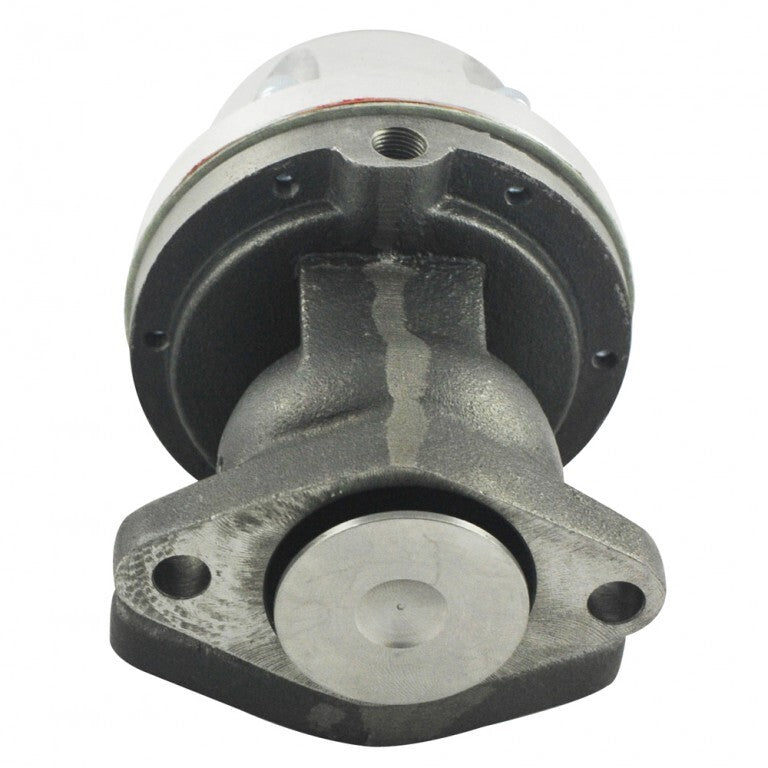

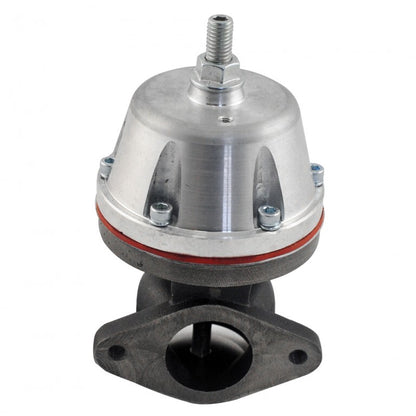

SPA Wastegate MCS 41mm silber
Wastegate mit 2-Kammerregelung
Das SPA Wastegate MCS 41mm ist ein Wastegate das dem TiAL F38 nachempfunden ist. Es ist mit einem 41mm Ventil ausgerustet und bietet damit einen hOheren Durchfluss als die TiAL F38 Wastegates und passt dennoch auf alle 38mm Flansche. Es dichtet direkt auf dem Krummer ab und verfugt uber ein robustes Aluminum Gehause mit Guss-Basis. Das Ventil hat eine 90° Abdichtung: 45° Ventilsitz. 45° Ventilteller
Leistungsbereich: bis zu 450PS
Krummeranschluss: TiAL F38 Flansch
MaBe:
| Krummeranschluss: |
Ausgangsanschluss: |
|
![]() |
.
Wastegate Aufbau:
Wastegate MCS 41mm silver
wastegate with 2-chamber control

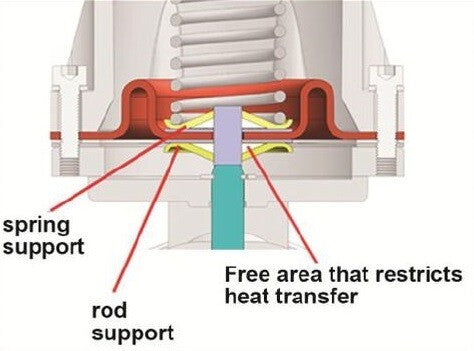

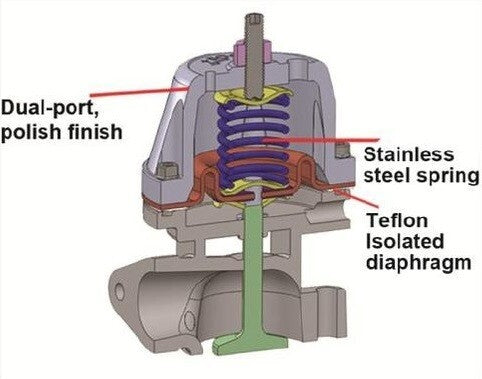

The SPA Wastegate MCS 41mm is a wastegate that is build like the TiAL F38. But it is equipped with a 41mm valve which brings a higher air flow and it fits still on F38 flanges. It seals directly onto the manifold and has a robust aluminum housing and a cast base. The Valve has a 90° sealing: 45° valve seat. 45° valve disc
HP range: uo to 450HP
manifold fitting: TiAl F38 flange

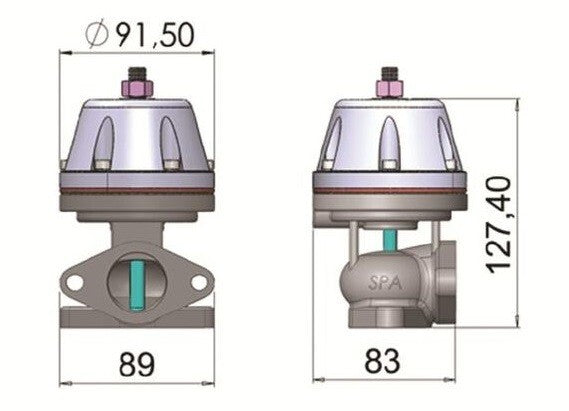

Measurements:
| maniflod fitting: |
dump pipe fitting: |
|
![]() |
.
Wastegate Setup:
