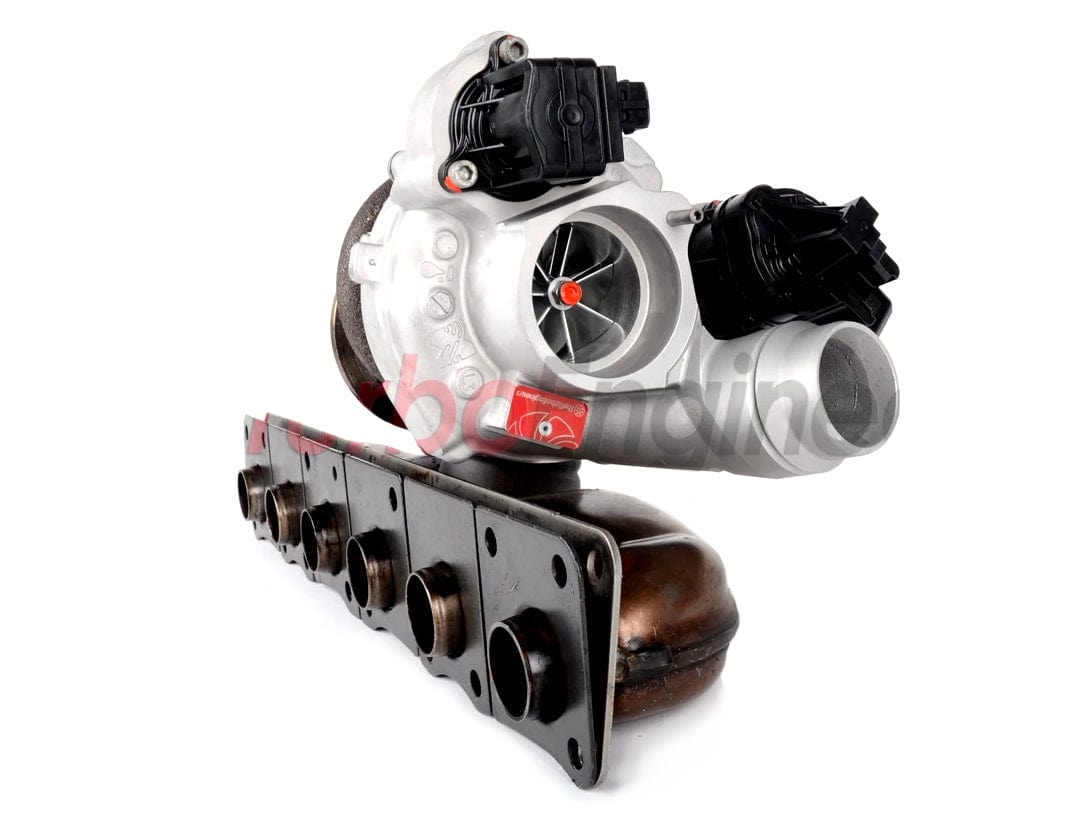

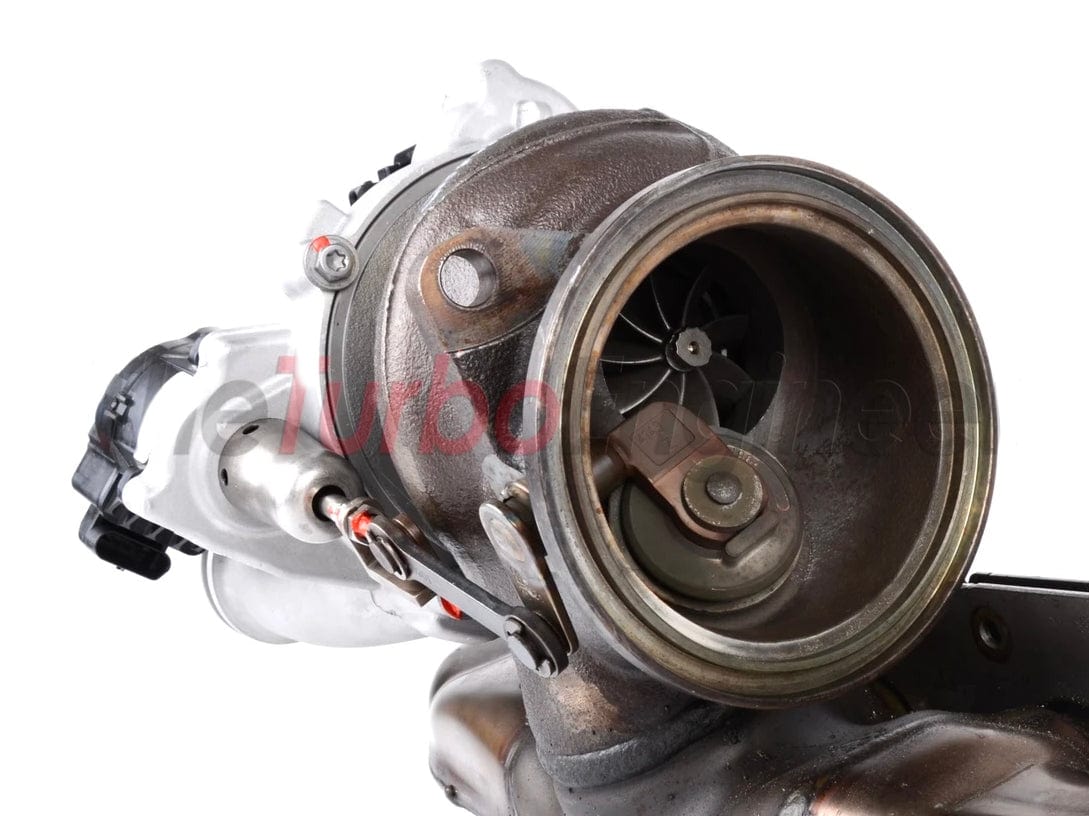

The TTE550 for the N55 motor. Still keeping the original turbocharger the compressor wheel is exchanged for a TTE milled aluminum wheel with state-of-the-art geometry, 7+7 blade so producing extra power. Equally, we change the original exhaust turbine for a far larger but very lightweight 9 blade TTE designed the turbine for lower exhaust gas back pressure giving greater performance, yet still giving a good spool response.

We also fitted a TTE motorsport upgrade bearing system for durability.

Picture is for illustration only, the actual product may differ from the images.

Engineered & Enhanced

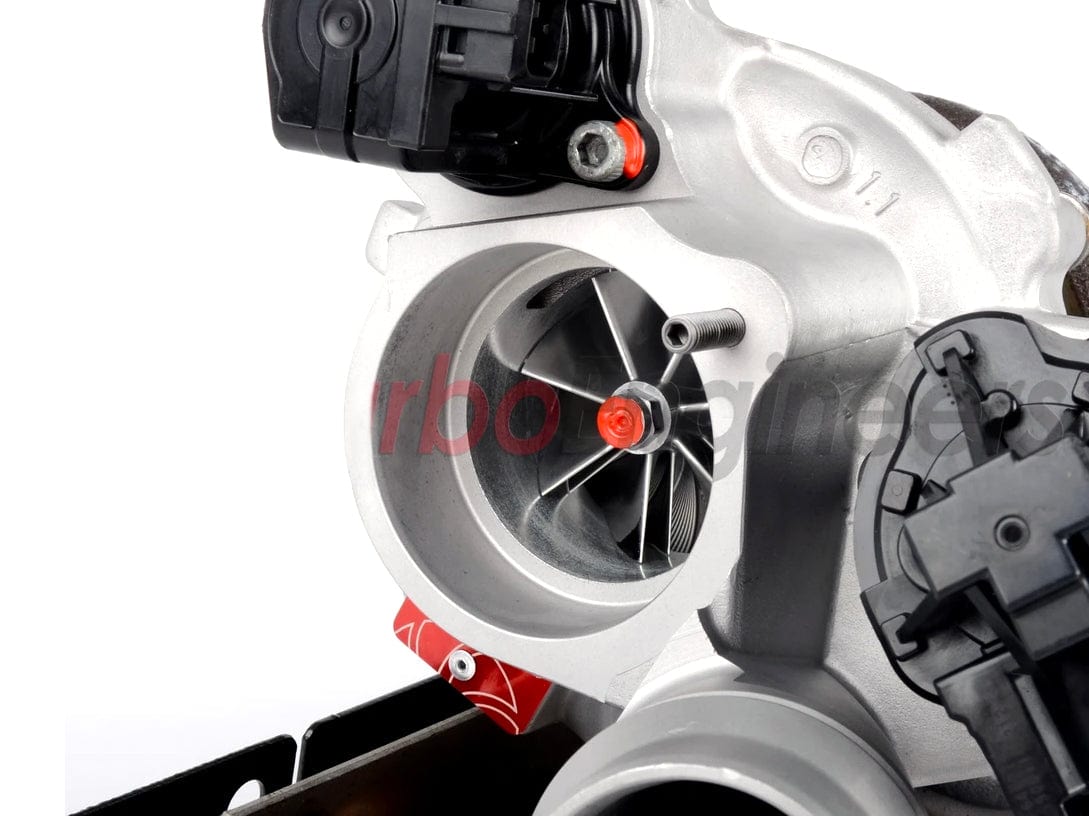

The formula to making a TTE550 starts with a much larger TTE billet compressor wheel, chosen because is highly efficient, new generation type with very thin blades, creating extremely high flow for comparative size, giving a compressor map that's very wide. The Re-Profiled compressor cover is machined to a optimised tolerance to ensure maximum compressor efficiency. Also the intake pipe is larger and ported to give a smooth transition for the incoming air flow.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Please note if sending a used turbocharger for the upgrade process.  TTE does not test or recondition the Electronic actuator you send.  Your sent actuator will be re-installed.

• Genuine Housings & Components
• Highly Efficient Next Gen Billet Compressor Geometry
• Optimised Compressor Cover Machining Clearances
• Latest Last Gen Larger 9 blade Turbine
• Genuine diverter valve
• Fitment As Original. Plug & Play
• TTE Billet Larger Compressor Wheel
• TTE High-Flow Bigger Turbine (Unlike others that retains stock turbine)
• Motorsport Bearing Pack
• 550 PS Proven
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Proven TheTurboEngineers quality
• Made in Germany

Upgrade your Existing Turbo
To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.

All BMW E and F chassis with the N55 turbocharged engines, manufactured between 2011 to June 2013 equipped with the Pneumatic Wastegate.

BMW 1 Series E82/E88 135i and F20/F21 M135i (2011 - June 2013)

BMW 3 Series E90/E91/E92/E93 335i and F30/F31 335i (2011 - June 2013)

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

SW10074.2 (Refurbished)
TTE10074 (New)

Upgraded by

TheTurboEngineers (TTE)

Warranty

One year TTE warranty.

Delivery

To upgrade your existing turbo, the estimated delivery time is around 3-4 weeks after receiving your existing turbo.

Our new turbos are made to order, the estimated delivery time is also 3-4 weeks after receiving your order.

TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.
