ST Suspension BMW F20 F23 F30 F36 XTA plus 3 Adjustable Coilover Kit (Inc. 125i, 225d, 335i & 440i)

ST Suspension BMW F20 F23 F30 F36 XTA plus 3 Adjustable Coilover Kit (Inc. 125i, 225d, 335i & 440i)

Regular price $2,393.00
Regular price $2,393.00 Sale price $2,393.00
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

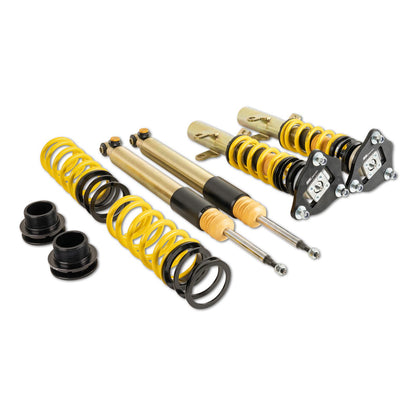

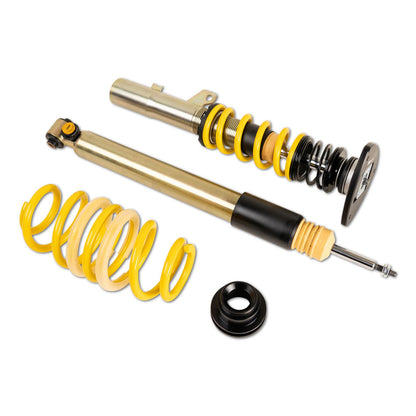

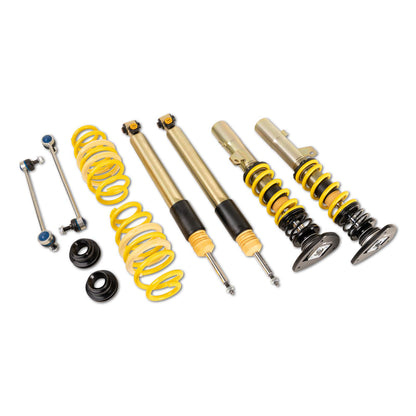

ST XTA plus 3 COILOVERS

The XTA plus 3 coilover kit gives your car maximum performance for the road and the tools you need for any challenge.

From the factory, the XTA plus 3 coilover kit is equipped with KW dampers that are adjustable in high- and lowspeed compression as well as adjustable rebound damping. With 24 clicks of adjustment for each, high speed and low speed compression damping and 18 clicks of rebound adjustment, your suspension knows no limits. It doesn’t matter if you bolt in an aftermarket roll cage, weld in a cage, modification to PU bushings upgrade to spherical bushing or changed wheel loads – the XTA plus 3 coilover has what it takes to keep your car dialed! Of course, the XTA plus 3 also includes a parts approval certificate, race springs and aluminium unibal top mounts.



Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA plus 3 coilovers due to the type of construction.



KW Engineering: Exclusive for ST suspension

The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.



  • Latest damping technology for maximum longevity
  • Reduced system friction for effective damping adjustment
  • Individual lowering within the tested adjustment range
  • Front and rear axle (when possible) with thread adjustment
  • Galvanized coilover struts with additional coating for an optimized corrosion protection
  • Complete solution with adjustable spring plate, race spring system and bumpers with dust protection

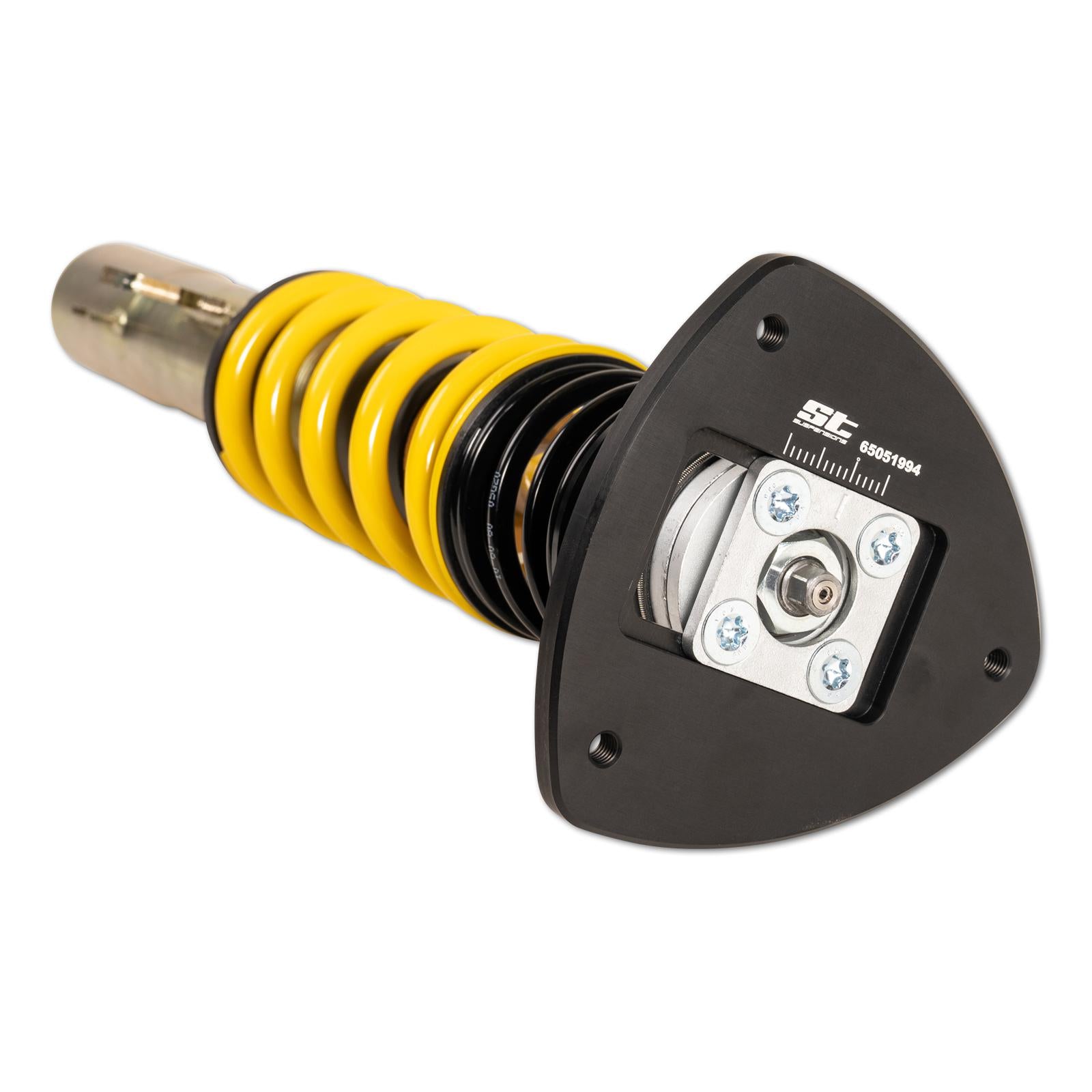

  • Aluminium adjustable uniball top mounts (when possible)
  • Scaled camber adjustment (optionally also caster), when possible

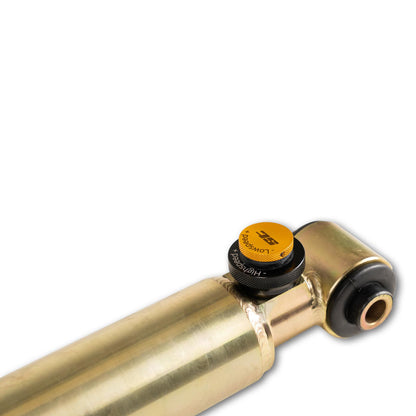

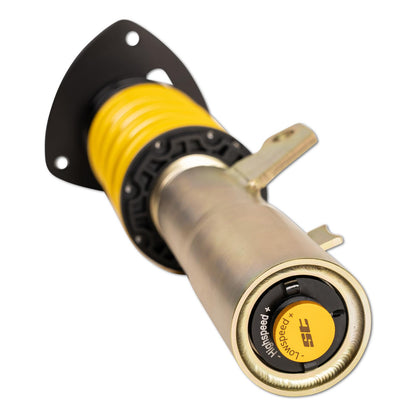

  • 3-way adjustable dampers:
  • 18 clicks low speed rebound damping
  • 24 clicks low speed compression damping
  • 24 clicks high speed compression damping



      • 1' F20   (07/2010 — 02/2015)
        • 114d, 114i, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 1120dx, 125d, 125i, M135i & M135ix
      • 1' F20 LCI   (05/2014 — 06/2019)
        • 114d, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 120dx, 120i, 125d, 125i, M135i, M135ix, M140i & M140ix
      • 1' F21   (07/2010 — 02/2015)
        • 114d, 114i, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 120dx, 125d, 125i, M135i & M135ix
      • 1' F21 LCI   (05/2014 — 06/2019)
        • 114d, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 120dx, 120i, 125d, 125i, M135i, M135ix, M140i & M140ix
      • 2' F22   (10/2012 — 06/2017)
        • 218d, 218i, 220d, 220dx, 220i, 225d, 228i, 228ix, 230i, M235i, M235ix, M240i & M240ix
      • 2' F22 LCI   (09/2016 — 12/2019)
        • 218d, 218i, 220d, 220dx, 220i, 225d, 230i, 230ix, M240i & M240ix
      • 2' F23   (03/2014 — 06/2017)
        • 218d. 218i, 220d, 220i, 225d, 228i, 228ix, 230i, 230ix, M235i, M235ix, M240i & M240ix
      • 2' F23 LCI   (09/2016 — 12/2019)
        • 218d, 218i, 220d, 220i, 225d, 230i, 230ix, M240i & M240ix
      • 3' F30   (02/2011 — 07/2015)
        • 316d, 316i, 318d, 318dx, 320d, 320d ed, 320dx, 320i, 320i ed, 320ix, 325d, 328d, 328dx, 328i, 328ix, 330d, 330dx, 335dx, 335i, 335ix & Hybrid 3
      • 3' F30 LCI   (09/2014 — 10/2018)
        • 316d, 318d, 318dx, 318i, 320d, 320d ed, 320dx, 320i, 320ix, 325d, 328d, 328dx, 328i, 328ix, 330d, 330dx, 330e, 330i, 330ix, 335dx, 340i & 340ix
      • 3' F31   (07/2011 — 07/2015)
        • 316d, 316i, 318d, 318dx, 320d, 320dx, 320i, 320ix, 325d, 328dx, 328i, 328ix, 330d, 330dx, 335dx, 335i & 335ix
      • 3' F31 LCI   (09/2014 — 06/2019)
        • 316d, 318d, 318dx, 318i, 320d, 320d ed, 320dx, 320i, 320ix, 325d, 328dx, 328ix, 330d, 330dx, 330i, 330ix, 335dx, 340i & 340ix
      • 3' F34 GT   (07/2012 — 06/2016)
      • 3' F34 GT LCI   (09/2015 — 12/2019)
        • 4' F32   (11/2012 — 02/2017)
        • 4' F32 LCI   (05/2016 — 12/2019)
        • 4' F33   (03/2013 — 02/2017)
        • 4' F33 LCI   (05/2016 — 12/2019)
        • 4' F36 Gran Coupé   (07/2013 — 03/2017)
        • 4' F36 Gran Coupé LCI   (05/2016 — 12/2019)



          182022080D (2WD; Without Electronic Dampers)

          182022080E (2WD; With Electronic Dampers)



          Manufactured by

          ST Suspension



          Warranty

          Two years manufacturer warranty
