Racingline Audi VW Subframe Mount (Inc. 8P/8J S3/TTS & MK5/MK6 GTI/Golf R)

Racingline Audi VW Subframe Mount (Inc. 8P/8J S3/TTS & MK5/MK6 GTI/Golf R)

Regular price $181.00
Regular price Sale price $181.00
Anniversary

Price Match
View full details

Description

Get your power to the road or track where you need it.

To harness your power increases, and transfer that power to the track where you need it, our Uprated Drivetrain Mounts will give a much more solid drive, and crucially add durability to any high-powered or hard-driven car.

The whole engine and gearbox (the drivetrain) is located in just three places. The two upper mounts support the entire weight of the engine/gearbox, plus a third Lower Mount underneath the engine.
  • Our Uprated Drivetrain Mounts are a CNC-machined, fully engineered replacement set of three mounts designed to greatly decrease engine and transmission movement, ensuring clean transfer of power to the track.
  • The risk of wheel-hop under hard acceleration is almost eliminated as the whole engine and 'box assembly is firmly prevented from juddering when wheelspin occurs and through aggressive gearchages.
  • Available as a Lower Mount only for fast road use, and a full set of 3 Drivetrain Mounts for track/dragstrip/very high power cars.



TRANSFORM THE DRIVE

Transform the drive through eliminating wheel-hop off the line and through aggressive gear changes.



EXTENSIVE DEVELOPMENT

Careful development of the durometer (stiffness) rating of the polymer used, meaning less compromise on NVH.



ADD STRENGTH

Essential upgrade for modified cars to keep the drivetrain properly located.



LOWER MOUNT

For road cars, we recommend just the Uprated Lower Engine Mount for the perfect compromise



FULL SET

High-powered, track or hard-driven cars, should have the full Uprated Mount Set as the ultimate choice.



MQB DOGBONE

MQB-platform Lower Mount kit includes a billet aluminium Torque Link, as the factory pressed steel part lacks the stiffness needed.



For most hard-driven road cars, we recommend starting with the Lower Mount only. You can always add the two upper engine and gearbox mounts at a later stage.

  • A lot the fore/aft movement in the drivetrain is controlled by the Lower Mount - meaning that changing it alone makes a big difference to your drive.
  • The additional two upper mounts add more strength, but also add in more NVH (noise, vibration, harshness).

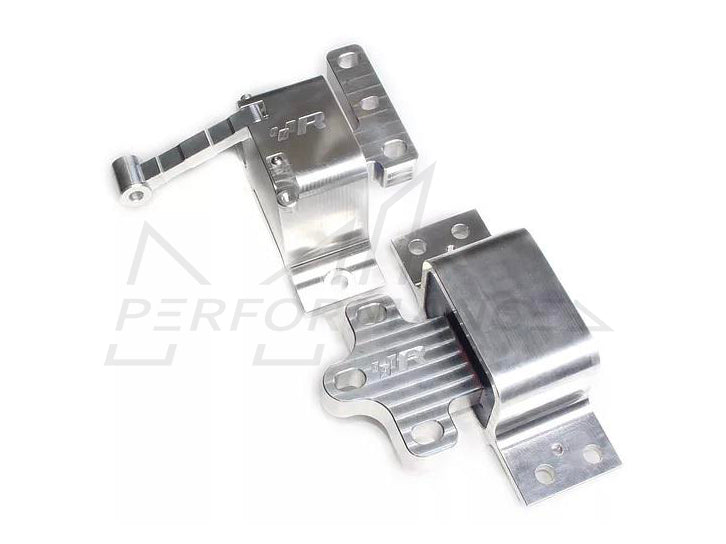

  • Our A5-platform mount (think Golf 5/6/Scirocco/S3 8P etc) is a two-piece unit pressed into the subframe. It's a clever dual-durometer design, and features a cut-out to clear bigger roll-bars on the 4WD cars.

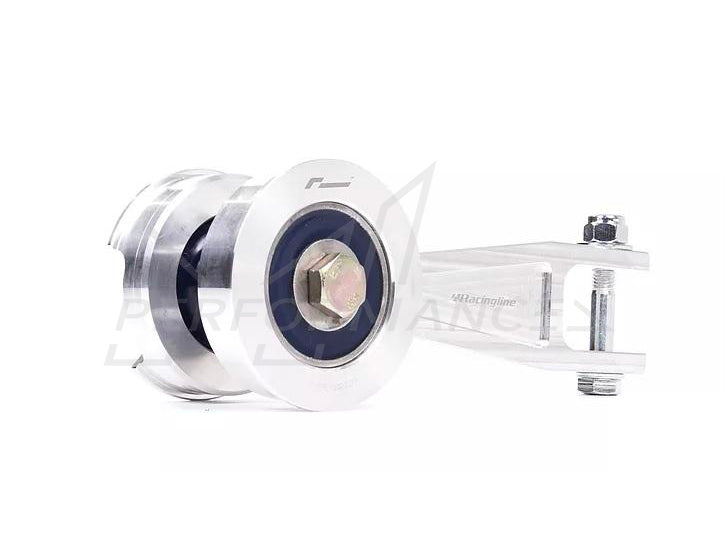

  • Our MQB platform Lower Mount also includes a billet aluminium Torque Link.  Our testing showed that the pressed steel part used on the MQB-platform cars lack the stiffness needed. Note that this mount doesn't fit the aluminium subframe MQB cars - such as TT, S3.



Fitted Photo



    For most hard-driven road cars, we recommend starting with the Lower Mount only. You can always add the two upper engine and gearbox mounts at a later stage.

    • A lot the fore/aft movement in the drivetrain is controlled by the Lower Mount - meaning that changing it alone makes a big difference to your drive.
    • The additional two upper mounts add more strength, but also add in more NVH (noise, vibration, harshness).
    • Our A5-platform mount (think Golf 5/6/Scirocco/S3 8P etc) is a two-piece unit pressed into the subframe. It's a clever dual-durometer design, and features a cut-out to clear bigger roll-bars on the 4WD cars.
    • Our MQB platform Lower Mount also includes a billet aluminium Torque Link.  Our testing showed that the pressed steel part used on the MQB-platform cars lack the stiffness needed. Note that this mount doesn't fit the aluminium subframe MQB cars - such as TT, S3.



    Compatibility
    • VW Golf 5 GTI 1K - 2005-2008
    • VW Golf 5 GTI ED30/Pirelli 1K - 2006-2007
    • VW Golf 6 GTI 5K - 2009-2014
    • VW Golf 6 R 5K - 2009-2014
    • VW Scirocco TSI/TDI 2008+
    • VW Scirocco R 2009+
    • VW Jetta V GLI 1K - 2005-2011
    • VW Jetta VI GLI 1B - 2011+
    • Audi A3 8P - 2003-2012
    • Audi S3 8P - 2006-2012
    • Audi TT 20 TFSI II 8J - 2006-2014
    • Audi TTS II 8J - 2008-2014
    • SEAT Leon II 1P - 2005-2012
    • SEAT Leon Cupra/R II 1P - 2006-2012
    • Skoda Octavia II 1Z - 2004-2013
    • Skoda Octavia vRS II 1Z - 2004-2013



    Manufactured by

    Racingline



    Part Number

    VWR15G503
