P3Gauges Audi B8 OBD2 Multi-Gauge (A4, S4, RS4, A5, S5 & RS5)

P3Gauges Audi B8 OBD2 Multi-Gauge (A4, S4, RS4, A5, S5 & RS5)

$397.00
$397.00
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

P3 Multi-Gauge products for Audi A4, S4, RS4, A5, S5 and RS5 models. Multi-Function digital vent gauge displays critical vehicle metrics like coolant temp, intake air temp, ignition timing, speed, RPM with shift light, and battery voltage - as well as peak recall and run/record recall in all modes.

P3 Gauges offer a Multifunction gauge that gives you the information you need while maintaining a clean OEM look. Starting at a price competitive to single feature old-school needle gauges, they offer unmatched feature to price ratio.



  • Plug and Play install - just plug into your OBD2 port and install into dash!
  • Reads and clears OBD2 Codes
  • OBD2 Data for Coolant Temp, Intake Air Temp, Exhaust Gas Temp, Throttle Plate, Vehicle Speed, RPM, Shift-light, Battery voltage, 0-60 timer and more!
  • Peak Recall on all functions
  • Boost and Vacuum from OBD2 port
  • Optional 80psi analog sensor
  • Optional Auto-Dim or Manual Dimmer
  • 2 x universal 0-5v linear analog inputs

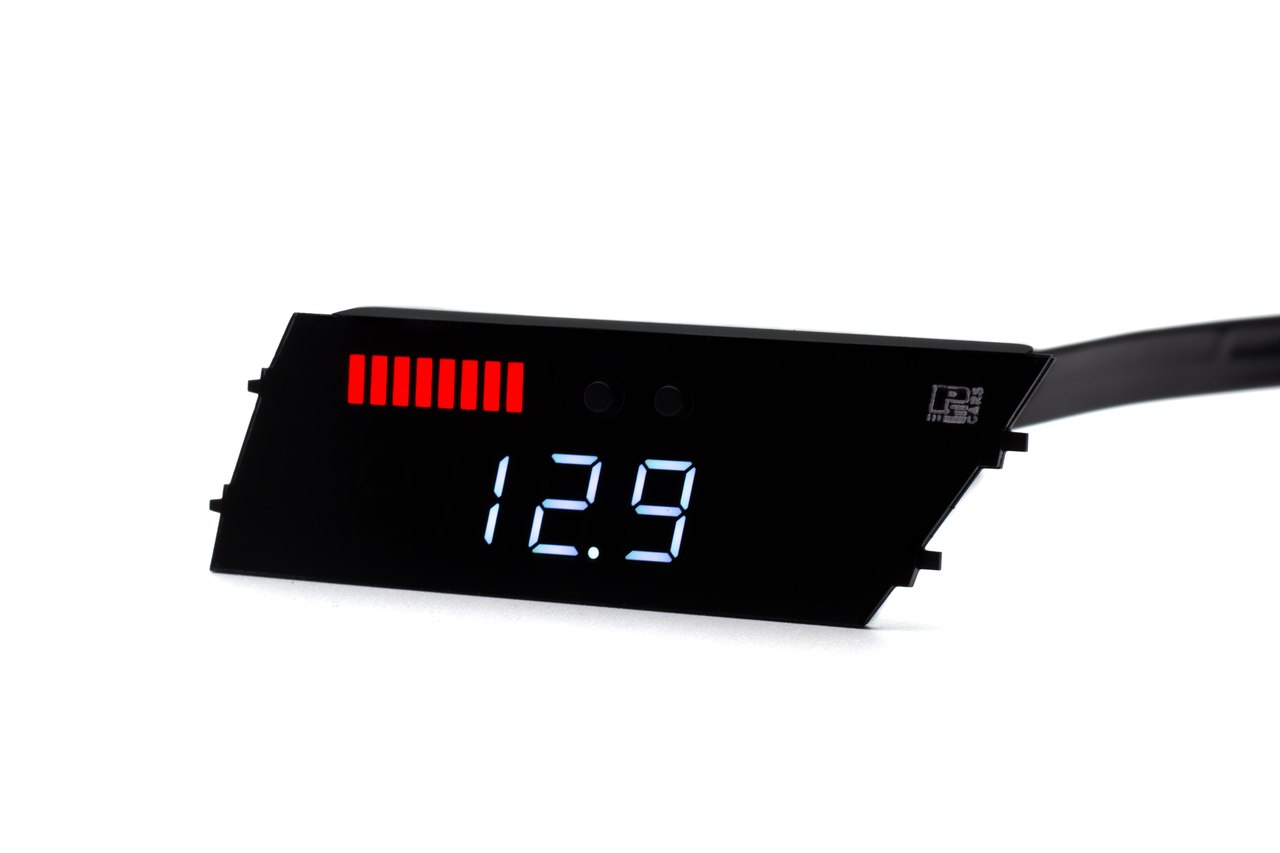

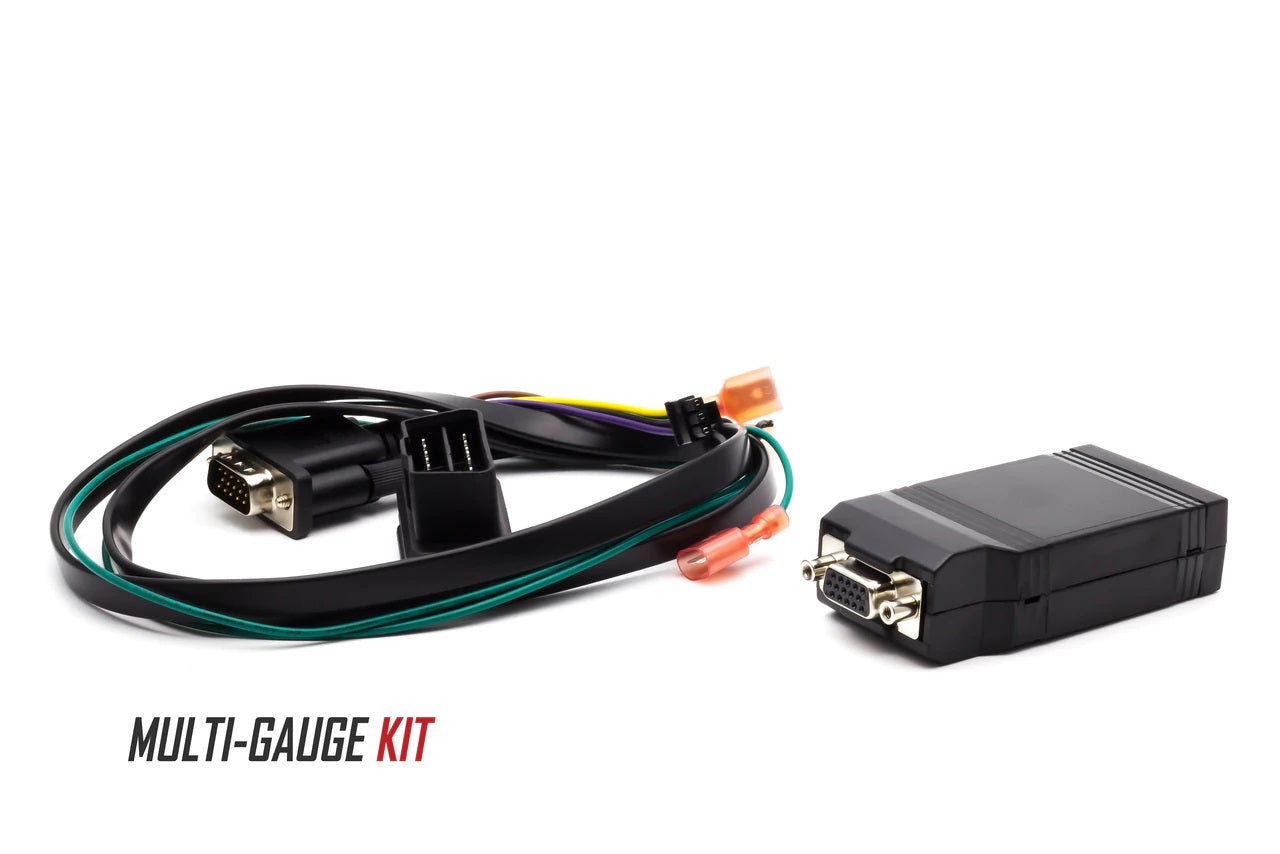

  • Includes digital display, custom OBD2 wire harness and control box.


Track Pack software upgrade

  • Adds Air/Fuel ratio through the OBD2 port
  • Adds 0-100/60-130/60-0/100-0 timers
  • Changes IAT to post-cooler sensor on 3.0T



Optional 80psi boost sensor

  • Allows gauge to read boost directly from intake/charge pipe
  • Plugs directly into the OBD2 harness (no wiring required)
  • Can be added/removed from the gauge at any time



Tubing kit

  • Approximately 60" of 5/32" O.D. flexible plastic tubing
  • 5/32" O.D. "T" fitting
  • 3 sections of 5/32" I.D. vacuum hose



OEM vent option

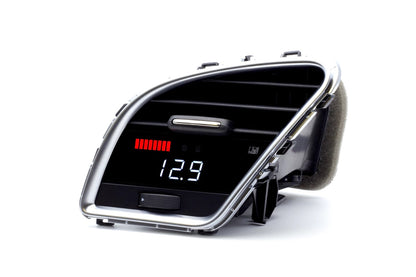

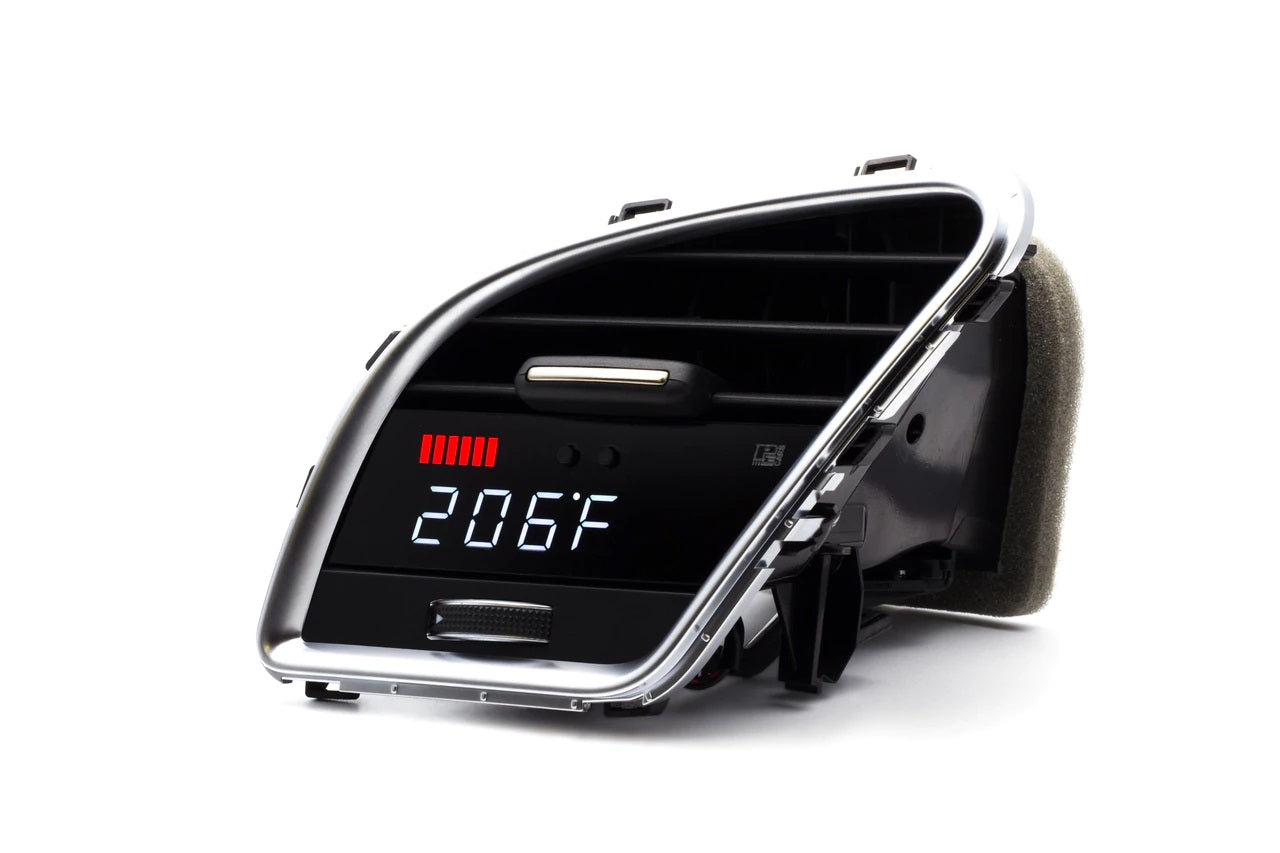

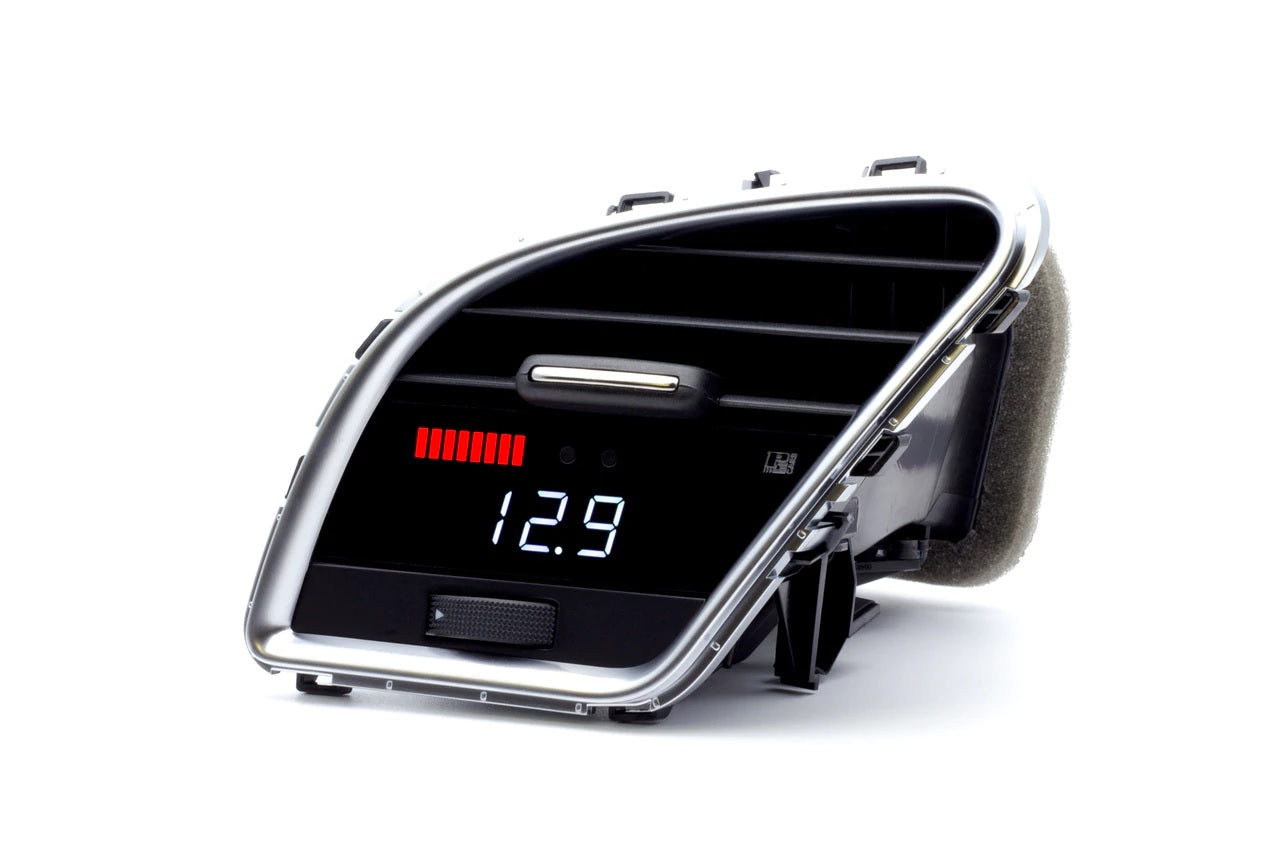

  • We install the display in an OEM vent for your vehicle to make your install even easier.


All Multi-Gauges include an on-the-fly configuration menu for setting units (BAR/PSI, Fahrenheit/Celsius MPH/KPH), Shift light, analog boost sensor calibration and more. See www.p3gauges.com/install for more details.


  • Audi B8 A4 2009+
  • Audi B8 S4 2010+
  • Audi B8 A5 2008+
  • Audi B8 S5 2010+
  • Audi RS4
  • Audi RS5 B8 & B8.5



3.0T requires "Track Pack" software upgrade to read post-cooler IAT

DOES NOT SUPPORT TDI



P3Gauges Audi B8 OBD2 Multi-Gauge (A4, S4, A5 & S5) ML Performance UK



vP3AB8X



Manufactured by

P3Gauges



Warranty

One Year P3Gauges Warranty against defects or failures.


P3G B8 Installation Video - 1

 P3G B8 Installation Video - 2
