Stage 1 or higher ECU Tune is required to run this transmission tune.
- On sale
Integrated Engineering
Integrated Engineering IE Audi 3.0T ZF8 AL551 TCU Tune (Inc. C7 A6, C7 A7, 8R Q5 & 8R SQ5)
Integrated Engineering IE Audi 3.0T ZF8 AL551 TCU Tune (Inc. C7 A6, C7 A7, 8R Q5 & 8R SQ5)
AUDI 3.0T ZF8 AL551 TRANSMISSION TUNE
The IE Transmission Tune for your Audi supercharged A6, A7, or SQ5 3.0T delivers increased power, higher RPM limit, faster shifts, variable launch control and additional transmission performance features when paired with the matching ECU tune. Acceleration times will greatly improve turning your tuned supercharged engine into a fully rounded performance monster.
Performance Matched
IE's record breaking 3.0T ECU Tunes are fully realized performance calibrations that deliver unmatched power figures. Without a matching TCU tune, the transmission will short shift the powerband at 6300RPM vs the tune's peak power at 7200RPM -leaving power on the table. Furthermore, the TCU upgrade modifies shift speed, torque limit maps, line pressure, and launch control functions, to fully match your ECU calibration. As a result, horsepower and torque levels are raised and acceleration is greatly improved to create a complete ECU & TCU performance package.
- Performance matched calibration for all IE 3.0T ECU tunes
- Refined drive for the automotive enthusiast
- Higher 7200RPM shift limit
- Increases torque limits
- Lightning-fast shift times
- Engagement lag reduced
- Removed manual shift delay
- Line pressure increased to protect against trans slip
- Variable launch control for dialed-in launches
- Direct port OBDII at-home flashing
Variable Launch Control
The IE ZF8 AL551 TCU Tune includes a variable launch control to deliver chest pounding launches from a stop. 3 different launch RPMs (street, aggressive, or race) are included to dial in the fastest launch for your vehicle and tire setup. With the optimized launch mode set in your TCU, you can launch to the moon knowing your tires will put down the maximum power needed for the fastest launch.
One Tune for All Stages
IE’s ZF8 AL551 TCU tune is all-inclusive without any unnecessary upgrades or additional charges for future ECU Tune upgrades. All features and optimizations are included for any level of hardware or performance stage, one cost and you are covered for all and any future upgrades.
Easy Install From Home

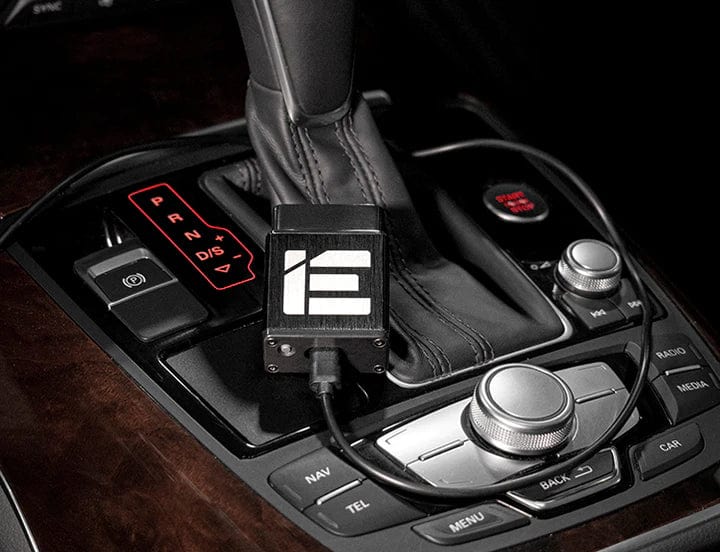

E's POWERlink Cable and Flash Wizard software gives you the freedom to quickly flash your new IE ECU or TCU Tune. Simply plug your POWERlink into the vehicle's OBD-2 port and follow the on-screen directions, it's that easy!
If you are purchasing along with an IE ECU Tune, you do not need to purchase two POWERlink cables. One cable can flash both your ECU and TCU tunes.
Reliability Testing
IE's fully proven transmission software allows the full performance experience from your supercharged 3.0T engine while retaining factory comfort and reliability. IE's own tuning technology suite is used to completely reverse-engineer the factory transmission mapping, allowing our software engineers access to realign all safety protocols for the new TCU calibration. Every tune parameter undergoes months of testing on our in-house dyno systems to verify all correct conditions for peak power delivery and reliability. All driving behavioral maps undergo thousands of miles of testing and a variety of users were polled to develop the ideal driving behavior.
Refined Drive
The factory transmission calibration has many performance short comings leaving much to be desired by the enthusiast driver. IE software engineers have completely reworked the transmission tune computer with performance driving in mind. This new calibration is much more refined, removes the factory "clunky" feeling, and completely transforms the feel of your supercharged Audi in every driving scenario.
Torque Limiter Raised
ECU Tuning and pulley upgrades unlock huge power gains from the 3.0T supercharged engines. Increasing the torque limits and line pressure mapping allows for the transmission to hold power increases without causing transmission slip or expedited wear.
Engagement Lag Reduced
The transmission engagement has been reworked to reduce annoying lag when shifting from park or reverse into drive. This feature is most noticeable in daily driving scenarios and makes your every day commute much more enjoyable.
- AUDI A6 2010-2018 C7 - C7.5 3.0T S/C (Gen1 & CREC)
- AUDI A7 2010-2018 C7 - C7.5 3.0T S/C (Gen1 & CREC)
- AUDI SQ5 2014-2016 8R 3.0T S/C
- AUDI Q5 2014-2016 8R 3.0T S/C
TRANSMISSION FAMILY: AL551
TRANSMISSION TYPE: Automatic (ZF8)
GEARS: 8
NOTE: The higher 7200RPM shift limit requires an IE ECU Tune with a higher RPM limit (IE file is 7450RPM). If you are using a non-IE brand ECU Tune, make sure your tuner raises the ECU RPM limit above 7200RPM to be compatible before installing this TCU tune file.
WHAT IS CREC? CREC is the engine code for the updated 3.0T Supercharged engines found in 2016-2018 Audi A6 & A7 chassis. The CREC variation includes numerous changes from the previous generations of the 3.0T platform including a dual direct and port injection fuel system, supercharger refinements, a new ECU, and many other changes. The easiest way to verify if you have a CREC engine is to check the upper supercharger pulley; CREC is equipped with a 4 bolt supercharger pulley where as all previous gen engines have a press-on pulley. Still not sure? Don't worry, our IE POWERlink cable will identify the correct tune for you car automatically.
TUNE UPDATES: Your tune purchase entitles you to free updates to any tune revisions, new octanes, standard features, or software updates. In the event the original vehicle manufacturer issues an ECU update, this will also be included to you through IE at no additional charge.
POWERLINK VINS: Have multiple cars in the family or friends that are also ready for an IE Tune? Your POWERlink Flash Tool can be used on up to 5 different vehicle VINs. Tunes sold separately.
TUNE REGISTRATION: Once a tune purchase is applied to your vehicle's ECU, the tune is permanently registered to the vehicle and non-transferable to other vehicles. Tunes can be transferred to a second party in the event of vehicle transfer of ownership only.
IE's POWERlink Cable and Flash Wizard software gives you the freedom to quickly flash your new IE ECU Tune. Simply plug your POWERlink into the vehicle's OBD-2 port and follow the on-screen directions, it's that easy!
IESOVJ21 (Stage 1)
IESOVJ22 (Stage 2)
Manufactured by
Integrated Engineering (IE)
Five-star Support
IE's number one goal from purchase to installation is to provide you with the best customer experience in the industry. We want what you want; a simple purchase process, products that exceed expectations, and a brand that's got your back. If at any point you have any questions, need help, or require support with your new tune our educated customer support team and tuning specialists are standing by and happy to help. Purchasing an IE tune not only guarantees a quality product, but that you will always have us in your corner.
