HEL BMW E81 E82 E89 E90 E92 M Sport Stainless Steel Front and Rear Braided Brake Lines (Inc. 135i, 320i, 335i & Z4 35i)

HEL BMW E81 E82 E89 E90 E92 M Sport Stainless Steel Front and Rear Braided Brake Lines (Inc. 135i, 320i, 335i & Z4 35i)

Regular price $144.00
Regular price $169.00 Sale price $144.00
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

The difference between winning and losing is a very fine line...

On every mile of every race track the importance of high performance precision braking control has been proven. Total feel and response give you the confidence you need on the road. The difference between an average driver and a great driver is those who can control speed and those who cannot. Speed is nothing without control and it's a very fine line - Which is why HEL Performance only supply very fine lines.

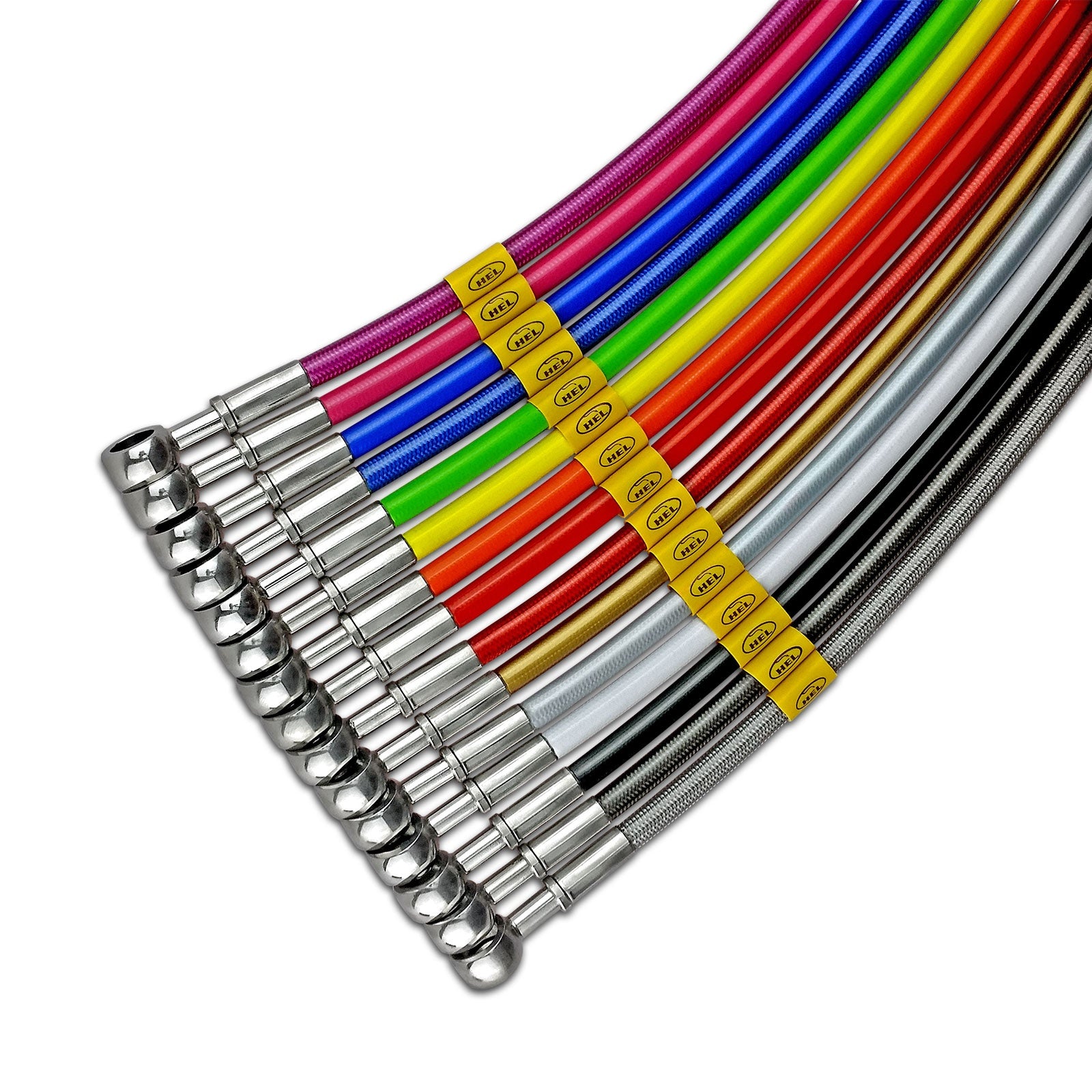

Each HEL Performance brake line kit is assembled in-house from the finest quality stainless steel fittings swaged directly to hard drawn tensile stainless steel braided hose.

With our extensive automotive listings the complete kit will be manufactured to exact specifications, guaranteeing the look, the quality and the performance you demand.

HEL Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision.

Don't risk using inferior brake lines when you can trust us to improve braking reliability and performance - We use stainless steel in our lines and our fittings. Most competitors use zinc plated fittings which are at risk from corrosion.

Choose your colour and click 'add to basket' to order your brake lines.

What's Stopping You?


Like for like replacements for the standard flexible brake hoses on your vehicle.



    Line inner material: PTFE

    Line outer material: Stainless steel (303/304) and protective PVC cover

    Fittings material: Stainless steel (303/304)

    Temperature range: -70°C to 260°C (-94°F to 500°F)

    Inside diameter: 3.5mm (0.138")

    Outside diameter: 7.5mm (0.295")

    Maximum working pressure: 290 Bar (4206 PSI)

    Burst pressure: 870 Bar (12618 PSI)

    Minimum bend radius: 38mm (1.496")



    • Front and Rear Stainless steel braided brake lines
    • Stainless steel banjo bolts (if the fittings require them)
    • Copper crush washers (if the fittings require them)
    • Lifetime warranty keyring fob
    • Installation leaflet



    • 1' E81   (02/2006 — 12/2011)
    • 1' E87   (02/2003 — 02/2007)
    • 1' E87 LCI   (01/2006 — 06/2011)
    • 1' E88   (11/2006 — 10/2013)
    • 1' E82   (11/2006 — 10/2013)
    • 3' E90   (02/2004 — 09/2008)
    • 3' E90 LCI   (07/2007 — 02/2012)
    • 3' E91   (02/2004 — 08/2008)
    • 3' E91 LCI   (07/2007 — 05/2012)
    • 3' E92   (05/2005 — 02/2010)
    • 3' E92 LCI   (11/2008 — 06/2013)
    • 3' E93   (09/2005 — 02/2010)
    • 3' E93 LCI   (11/2008 — 10/2013)
    • Z4 E89   (01/2008 — 08/2016)

    M Sport Models only

    Please Note: Does not fit xDrive models and E91/E92/E93 M3



    BMW-6-342



    Manufactured by

    HEL Performance



    Warranty

    HEL Lifetime Warranty
