As the engine does not have a diverter valve fitted as standard, Forge have developed a twin piston dump valve that not only gives you an incredibly loud sound when lifting off the throttle, but also increases the throttle response during gear changes by reducing turbo lag. It has been designed to help the turbocharger maintain its rotational speed ready for when you accelerate, whilst also taking the strain away from the impeller. Without removing this stress from your turbo, it could cause premature failure. Especially on engines and modified vehicles.
This valve kit allows the fitment of our fast response blow off valve preventing turbo surge and prolonging the life of your engine’s turbocharger.
The kit includes all of the necessary hardware and step by step installation instructions for any car enthusiast with appropriate garage tools to fit at home, in just a couple of hours!
Due to the exposed position of the OEM boost pipe and the nature of heat cycle, the plastic that the OEM pipe is made from can deteriorate over time, becoming brittle and susceptible to boost leaks. This kit totally replaces this plastic pipe from turbo to manifold with a silicone hose (available in a choice of colours!).
Please Note: Forge Motorsport valve solution for the VW group 1.5TSI EVO engine is fits vehicles with engine code: DAD, DADA and DACA. We cannot guaranteed the valve kit to fit with all aftermarket intakes.

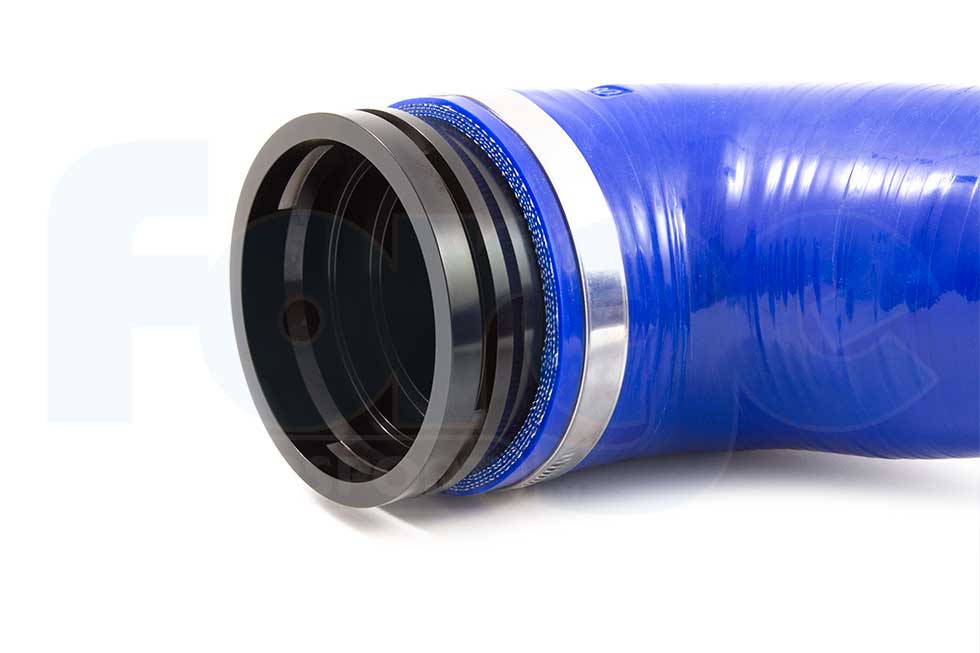

- CNC machined billet couplers and components

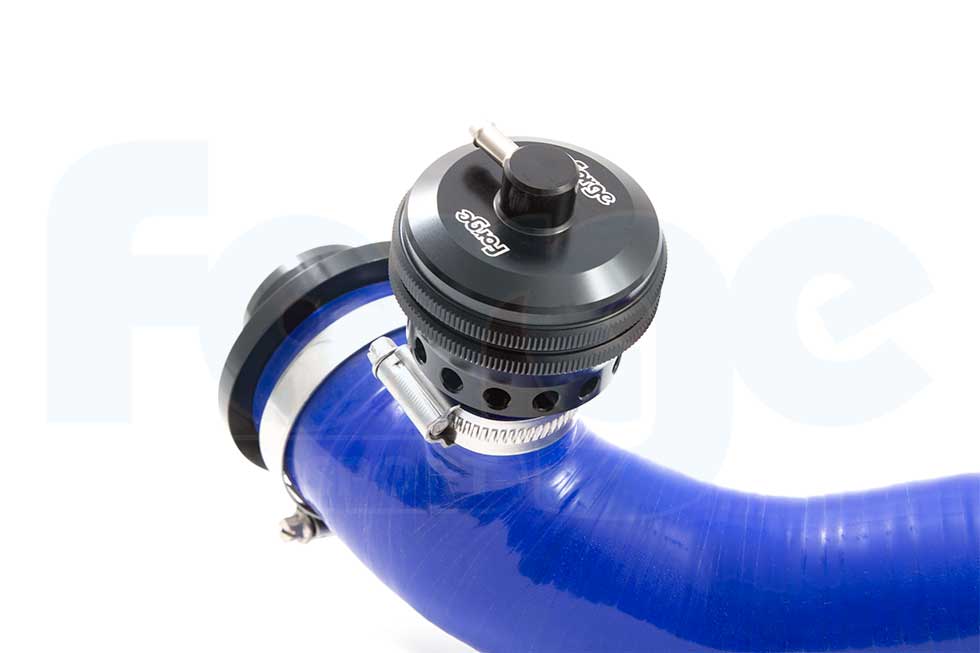

- CNC machined twin piston Forge valve
- Three hose options: red, blue, or black (Custom available but will incur a 50% non-refundable deposit and a lead time of 8-10 weeks)
- Forge valve will not bring on any check engine lights (EML)
- The hose has a quality inner lining of modified silicone known as 'Fluorosilicone'. This means that the hose will stay bright and vibrant, and will not deteriorate over time. Forge Motorsport lined hoses are suitable to be used with modern long-life coolants, Organic Acid Technology coolants (O.A.T.) and oil mist. The construction of the hose has been engineered to exceed that of the OEM fitments, the Forge Motorsport hose will enhance any engine bay both technically and aesthetically.
- The hose from this kit replaces OEM part numbers 05E.145.673.E and 05E.145.674.E
- We cannot guarantee that this product will fit with all aftermarket intakes.

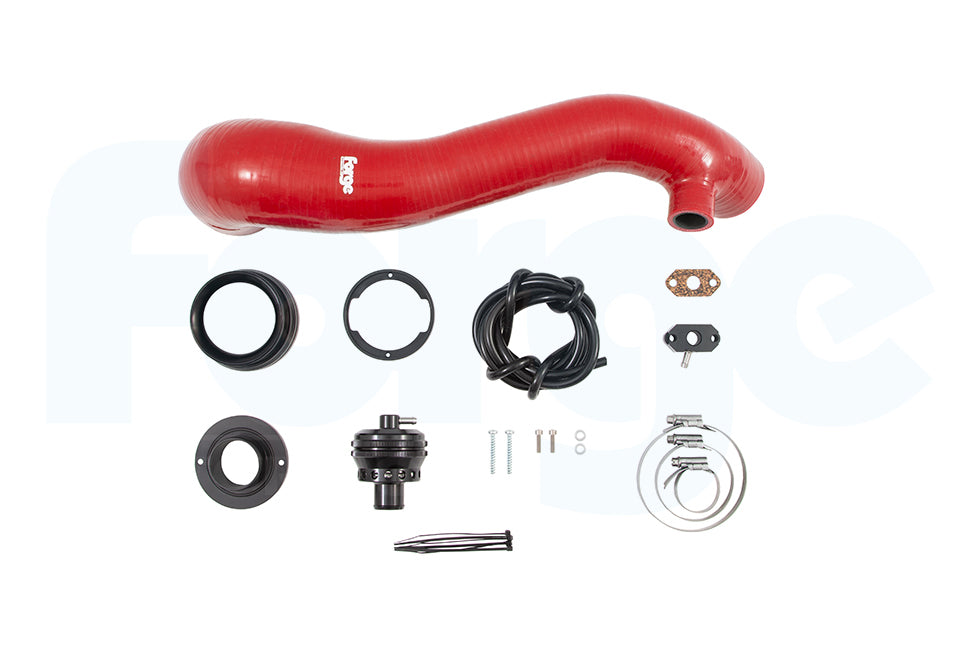

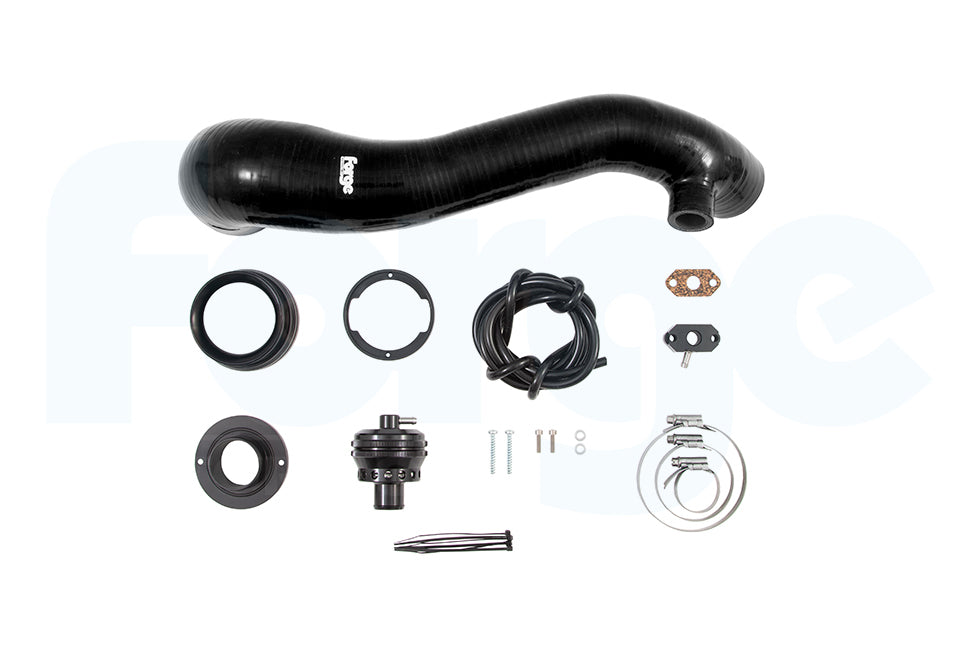

- 1 x Atmospheric Dump Valve
- 1 x Boost Tap/Take Off (Including Cork Gasket and Screws)
- Throttle Body and Turbo Couplers
- 1 x Silicone Hose (Red, Blue or Black)
- 3 x Hose Clamps
- All fixings and fittings
- 1 x Roll of Vacuum Tubing
- 1 x Wiring Loom Extension
- 1 x Forge Sticker
- Audi A1 / A3 1.5 TSI
- Audi Q2 / Q3 1.5 TSI
- Volkswagen Golf MK7.5 1.5 TSI
- Volkswagen Passat / Tiguan / Touran 1.5 TSI
- Seat MK5 (KJ) 1.5 TSI
- Seat Arona / Ateca / Leon / Tarraco 1.5 TSI
- Skoda Karoq / Kodiaq / Octavia / Scala / Superb 1.5 TSI
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
FMDV22 - Black
FMDV22-B - Blue
FMDV22-R - Red
Manufactured by
Forge Motorsports
Warranty
Forge Limited Lifetime Warranty (Non-Transferable)
