BMS

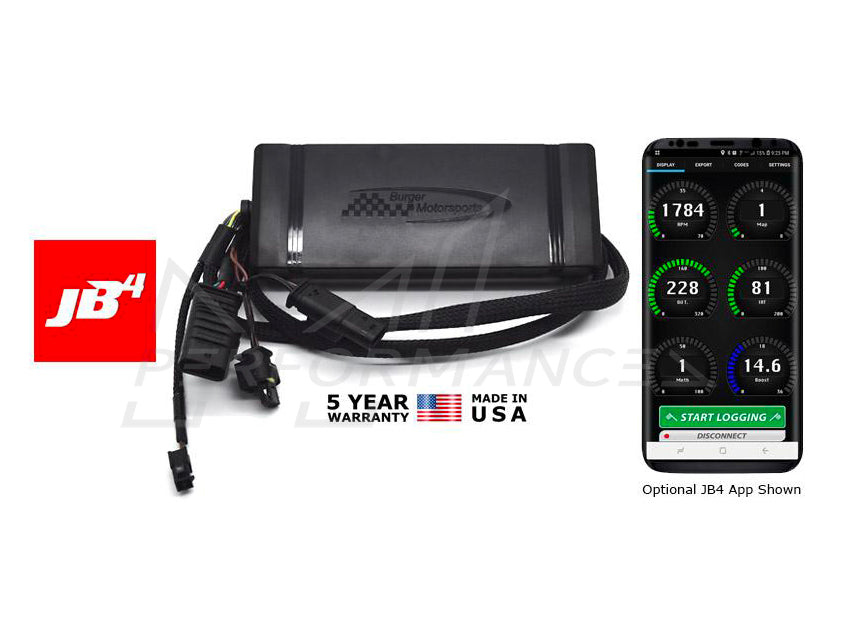

BMS BMW B58 B38 B46 B48 JB4 Tuning Box (M140i, 220i, M240i, 330e, 320i, 340i & 440i)

BMS BMW B58 B38 B46 B48 JB4 Tuning Box (M140i, 220i, M240i, 330e, 320i, 340i & 440i)

9 reviews
Regular price $553.00
Regular price Sale price $553.00
Anniversary

Price Match
View full details

You may also wish to add the Data Cable or the Bluetooth Connect Kit for additional features.

The JB4 is the most advanced and highly featured tuning system available for your B58 and B48 vehicle. Power gains are up to 80hp to the wheels (100hp crank) on a completely stock car on pump gas for a B58 and up to 40hp to the wheels (55hp crank) for a B48, gains with bolt-on parts, higher octane, E85 mixtures, and larger turbos are even higher.

The JB4 features a simple plug and play installation harness for easy installation & removal and includes many features not found with any other tune. Including on the fly in dash map switching between factory and various performance maps, optional in-dash gauge displays for boost, boost limiting by gear for improved traction in lower gears, progressive water/methanol support, built-in data logging, built-in code reading, optional direct EWG control to prevent throttle closure with exhaust modifications, exhaust flapper control, and much more. Other more expensive tuners may claim to equal the JB4's technology but upon closer examination lack most if not all of the JB4's features.

Remember the JB4 does not require any additional modifications or previous stages. Simply install the JB4 as your first and only modification and enjoy an entirely new fast and smooth racing experience. The JB4 also does not require any user setup or customization but for those who are interested in logging, adding new features as we post them, etc, we suggest the BMS DATA cable or REV3 mobile phone adapter. The JB4 automatically detects between the B46, B48, and B58 models at boot up making installation and setup a snap.

Note for 2018+ G chassis vehicles with the digital dash layout we have not yet added in the JB4 commands to allow in-dash control but will provide those via a free firmware update once developed. Until then a JB4 mobile adapter or BMS data cable is required for any map and setting changes.

JB4_B58 is CARB Approved Under Executive Order (EO) No.D-744-4 for all 2016-2018 BMW 230i, 330i, 430i, 530i, 340i, 440i, 740i, M240i, and X1 applications.

Wirelessly connect the JB4 to your Bluetooth 4.0 compatible iOS and Android device via the JB4 Mobile connect kit, or to your Windows laptop with the BMS data cable. Both options allow you to record and analyze vehicle and tuning data, change JB4 performance maps, and update JB4 firmware as we release free newer versions with updates, more powerful maps, and new features under development. Separate JB4 Mobile app purchase also required.



• Power gains of up to 50hp to the wheels on a stock vehicle
• Improves 0-60 times and 1/4 mile times
• Preloaded with custom BMW tuning software and up to 8 maps for various fuel and modification levels
• The JB4 offers a lot more performance, functionality, and safety than your average performance chip
• Quick Plug & Play Installation
• Includes the rugged JB4 billet aluminum enclosure for protection
• CANbus OBDII integration offering unrivaled tuning features and performance
• Improved performance over non-integrated chip tunes
• Runs as smoothly as stock, this is how your vehicle should have come from the factory
• Compatible with all driving modes
• Fuel economy unchanged during normal driving
• Compatible with JB4 Mobile for smartphone logging, tuning changes, and adjustment
• 91 octane fuel or better required for performance gains
• Ethanol (E85) compatible tuning maps
• Able to read/delete fault codes
• Not VIN locked and can be removed without a trace and resold down the road
• Made in the USA
• Free USA Shipping
• 5 year warranty


Map Guide as of v11 firmware:

Map0: Stock tuning, fully disable JB4
Map1: Additive map with peak of 3psi over stock added (91 octane)
Map2: Additive map with peak of 4psi over stock added (91-93 octane)
Map3: Additive map with peak of 6psi over stock added (93+ octane)
Map4: VALET / Low Boost Map
Map5: Additive map with peak of 6psi over stock added & more aggressive timing profile for higher octane fuel (experimental, 93+ octane, bolt on modifications)
Map6: Custom tuning map allowing both additive (below 10psi) and absolute (above 10psi) targeting
Map7: WMI map (boost varies based on WMI additive and map settings)


Map Guide as of v13+ firmware:

Map0: Stock tuning, fully disable JB4
Map1: Additive map with peak of 3psi over stock added (91 octane)
Map2: Additive map with peak of 4psi over stock added (91-93 octane)
Map3: Additive map with peak of 6psi over stock added (93+ octane)
Map4: Additive map with peak of 6.5psi over stock added (93+ octane)
Map5: Additive map with peak of 6psi over stock added & more aggressive timing profile for higher octane fuel (experimental, 93+ octane, bolt on modifications)
Map6: Custom tuning map allowing both additive (below 10psi) and absolute (above 10psi) targeting
Map7: WMI map (boost varies based on WMI additive and map settings)
Map8: VALET / Low Boost Map



Map Guide last updated on 23.01.2020 by Marshall L.



  • F Chassis B46/B48/B58 JB4

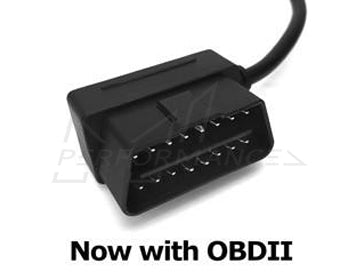

  • Extended OBDII Cable for RHD cars, also fits LHD
  • EWG connector
  • Billet aluminium case.


BMW 1 Series

• 2021+ F40 B48 128ti
• 2019+ F40 B48 M135ix
• 2019+ F40 B38 118i
• 2015+ F20/F21 B58 M140i
• 2016+ F20/F21 B48 120i, 125i
• 2015+ F20/F21 B38 116i
• 2015+ F20/F21 B38 118i


BMW 2 Series

• 2022+ G42 B58 M240i xDrive
• 2022+ G42 B48 220i 230i
• 2017+ F22 F23 B58 M240i/iX
• 2017+ F22 F23 B48 230i/iX
• 2017+ F22 F23 B48 225i/iX
• 2017+ F22 F23 B47 220i/iX
•2015+ F22 F23 B38 218i
• 2015+ F45 F46 B38 216i Active tourer and GT
• 2014+ F45 F46 B38 218i, 220i Active tourer and GT
• 2019+ F44 M235i/iX


BMW 3 Series
• 2020+ G20 G21 B58 M340i/M340iX
• 2019+ G20 G21 B46 B48 318i/320i/320Li/320e/330i/330iX/330e/320Li
• 2016-2019 F30 F31 F34 B58 340i/340iX
• 2016-2018 F30 F31 F34 B48 330i/330iX/330e
• 2016-2018 F30 F31 B48 325i/325iX
• 2016-2018 F30 F31 B46 320i/320iX
• 2016-2018 F30 F31 B46 318i/318iX

BMW 4 Series
• 2021+ G22 G23 G26 B58 440i/440iX/Gran Coupe
• 2021+ G22 G23 G26 B48 420i/430i/430iX/Gran Coupe
• 2016-2020 F32 F33 F36 B58 440i/440iX/Gran Coupe
• 2016-2020 F32 F33 F36 B48 430i/430iX/Gran Coupe
• 2016-2020 F32 F33 F36 B48 425i/425iX
• 2016-2020 F32 F33 F36 B46 420i/420iX
• 2016-2020 F32 F33 F36 B38 418i

BMW 5 Series
• 2017+ G30 B58 540i/540iX
• 2017+ G30 B46/B48 530i/530iX/530e

• 2017+ G31 B58 540i/540iX

BMW 6 Series
• 2018+ G32 G33 B48/B58 630i/640i/640iX

BMW 7 Series

• 2016+ G11/G12 730i/730iX
• 2016+ G11 G12 B58 740i/740iX

BMW 8 Series

• 2019+ G14 G15 G16 B58 840i/840iX/Gran Coupe

BMW X Series
• 2016+ B46/B48 X1
• 2018+ B46/B48 X2
• 2018+ G01 B48/B58 X3 2.0i/3.0i/M40i including xDrive and sDrive
• 2019+ G02 B48/B58 X4 2.0i/3.0i/M40i including xDrive and sDrive
• 2019+ G05 B58 X5 40i/40iX
• 2021+ G05 X5 45e
• 2019+ G06 X6 40iX
• 2019+ G07 B58 X7 40i

BMW Z4
• 2019+ BMW G29 B58 Z4 M40i
• 2019+ BMW G29 B46/B48 Z4 30i and Z4 20i

Will work on most BMW with the B48 and B58 engine even if it is not on the above list, if you are unsure, please drop us an email and we would be delighted to double check for you!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.





JB4 Dyno results

2016 BMW 340i B58, JB4, 93 Octane, Map3

BMS BMW F Chassis B46/B48/B58 JB4 (220i, 240i, 320i, 330i, 340i, 420i, 440i & X1 ) Dyno - ML Performance UK



2017 BMW 230i with B48 Engine, JB4

BMS BMW B58 B38 B46 B48 JB4 Tuning Box (M140i, M240i, 320i & 440i) - 2017 BMW 230i with B48 Engine, JB4



2016 BMW 340i B58, JB4, Pure Stage1 Turbo, 93 Octane, WMI

BMS BMW B58 B38 B46 B48 JB4 Tuning Box (M140i, M240i, 320i & 440i) - 2016 BMW 340i B58, JB4, Pure Stage1 Turbo, 93 Octane, WMI



BMS BMW B58 B38 B46 B48 JB4 Tuning Box (M140i, M240i, 320i & 440i)

BMS BMW B58 B38 B46 B48 JB4 Tuning Box (M140i, M240i, 320i & 440i) - 2016 BMW 340i B58, JB4, 93 Octane, WMI



BMS BMW F Chassis B46/B48/B58 JB4 (M140i, 220i, M240i, 320i, 330i, 340i, 420i, 440i & X1 ) Installation Guide - ML Performance UK

F-B46B48B58-JB4


Manufactured by

Burger Motorsports



Warranty

5 Year BMS Repair Warranty



JB4 Tuned M140i

How to install (US - LHD)

For install guide, map guide, and the latest firmware click here.

 JB4 B48/B58 CANFlap Exhaust Flapper Test



JB4 F Series OBDII CANbus Wheel Control DEMO



JB4 Add-On Blue Tooth Phone Logging DEMO with a new 2016 BMW M4 ZCP!
