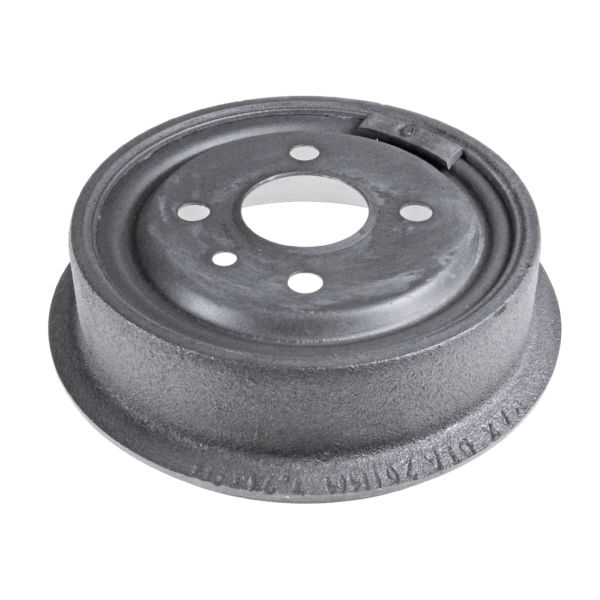

This is the BLUE PRINT ADG04701 Brake Drum.
Specification
| Fitting position | Rear |
| Inner diameter | 200.0 mm |
| Outer diameter | 242.0 mm |
| Thickness | 66.7 mm |
| Total height | 52.0 mm |
| Number of fitting holes | 4.0 pcs/ 1.0 pcs |
| Locating hole diameter | 57.0 mm |
| Width | 53.14 mm |
| Max slide size | 201.0 mm |
| Flange fitting spacing | 100.0 mm |
| A.B.S. | 5128S |
| ABE | C60002ABE |
| ASHIKA | 56-W0-000 |
| ASHIKA | 56-W0-000C |
| ATE - TEVES | 24.0220-0001.2 |
| BOSCH | 0 986 477 018 |
| BRAKE ENGINEERING | DR960690 |
| BREMBO | 14.4719.10 |
| DELPHI | BF102 |
| DENCKERMANN | B140038 |
| FENOX | TO216000 |
| FERODO | FDR329202 |
| FTE | 9190040 |
| FTE | BT109 |
| NIPPARTS | J3400900 |
| HI-Q | SD3034 |
| JAPANPARTS | TA-W00 |
| JAPANPARTS | TA-W00C |
| JAPKO | 56W00 |
| JAPKO | 56W00C |
| JURID | 329202J |
| KAGER | 36-0003 |
| KAMOKA | 104012 |
| KAVO PARTS | BD-1351 |
| LPR | 7D0138 |
| MAPCO | 35743 |
| MEYLE | 615 523 6002 |
| MINTEX | MBD002 |
| NK | 259905 |
| OPTIMAL | BT-0130 |
| PAGID | 62402 |
| QUINTON HAZELL | BDR109 |
| SAMKO | S70138 |
| SBS | 1825259905 |
| SIGMAUTO | DR5138 |
| TEXTAR | 94008600 |
| TEXTAR | 94048600 |
| TRICLO | 848162 |
| TRISCAN | 8120 24203C |
| TRISCAN | 812024203 |
| TRW | DB4002 |
| VEMA | 800828 |
| CHEVROLET | 96 175 281 |
| DAEWOO | 96175281 |
