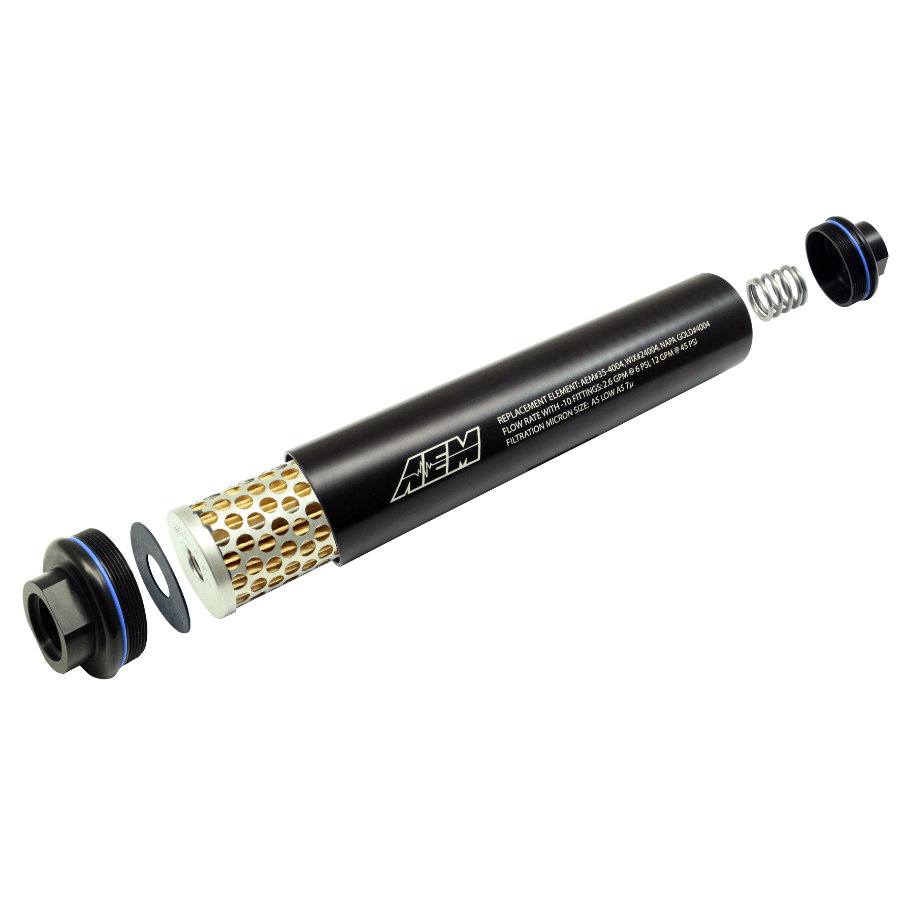

AEM's Universal High Flow -10 AN Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation.
The end caps are machined with -10AN female fittings that allow the filter to flow up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI. Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels.

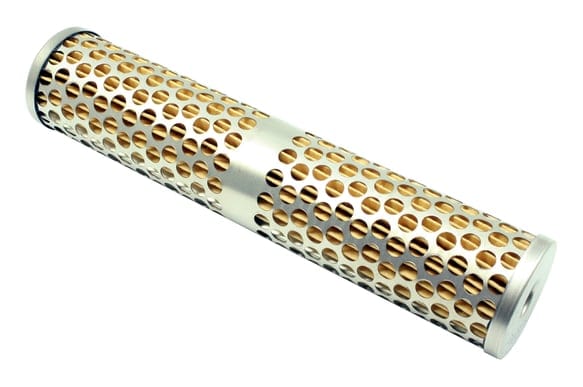

The commonly available replacement filter cartridges filter particles as small as 7 microns. The filter's standard 2" OD allows for easy mounting virtually anywhere in the vehicle for easy access.
- Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI
- Filters particles as small as 7 microns
- Machined from 6061-T6 aluminum with a black hard anodized finish
- Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels

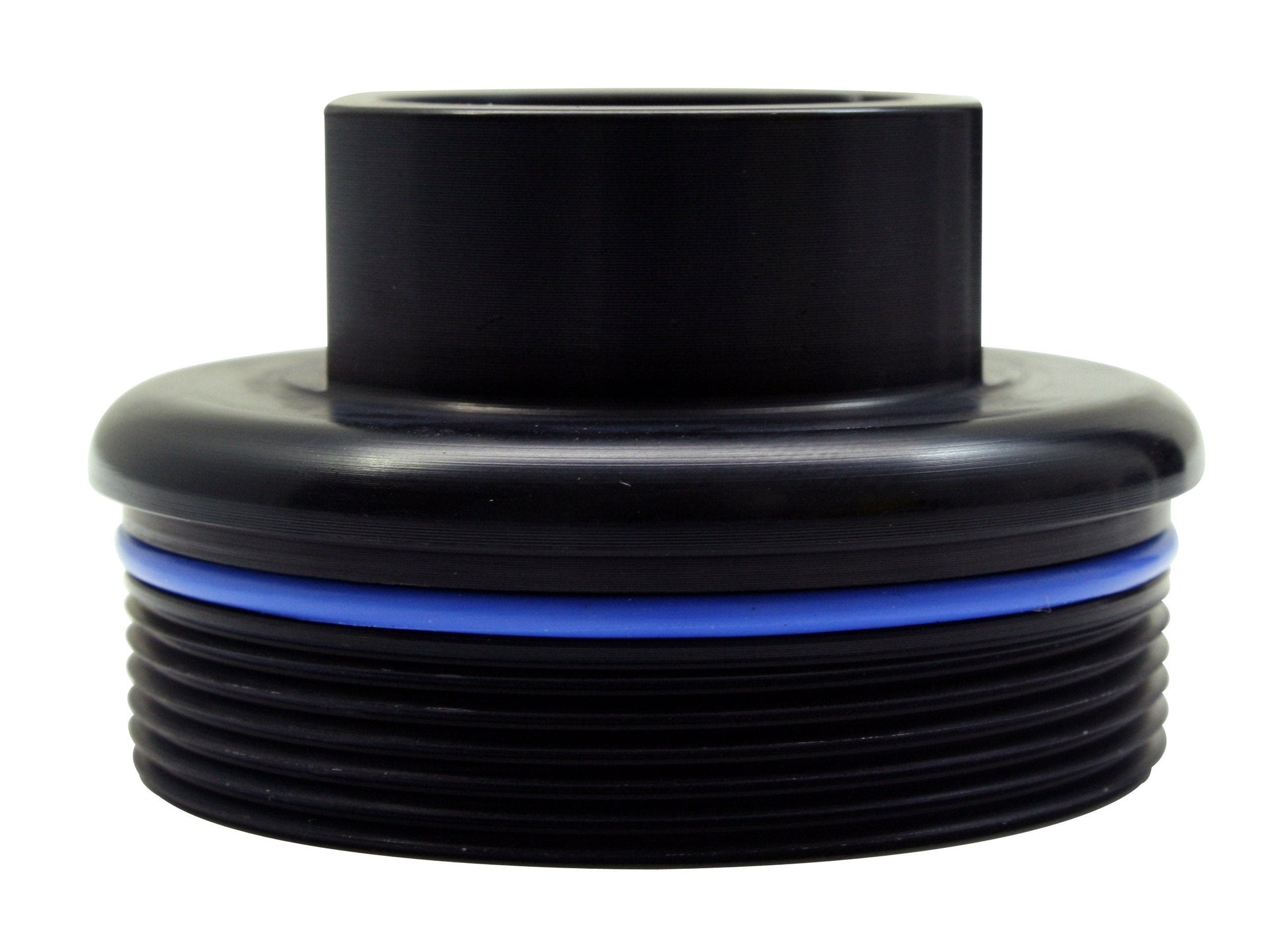

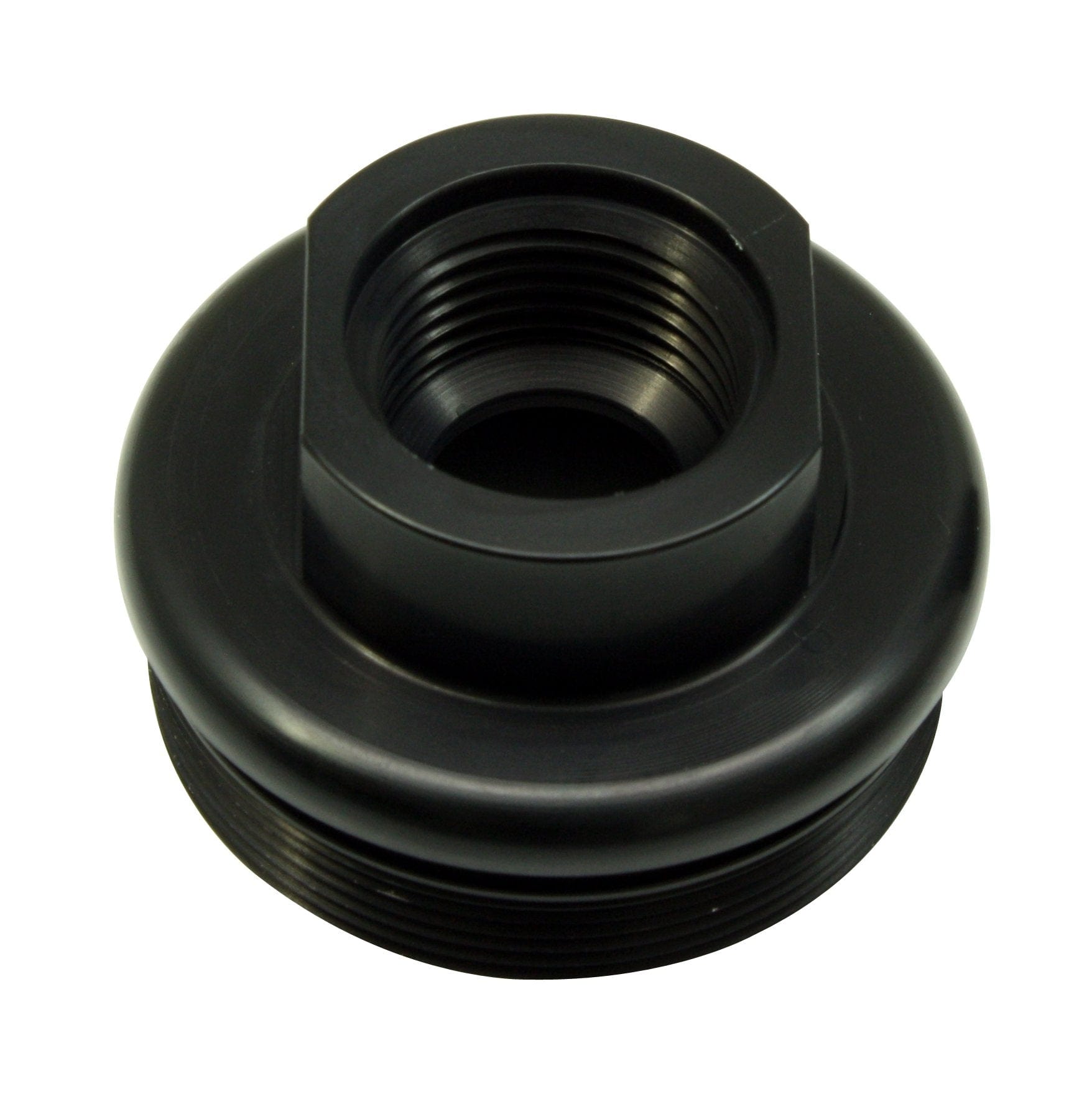

- End caps are machined with -10 AN female fittings with o-ring receiver groove
- End caps have pressure intensifiers for greater sealing of end gaskets
- 2" OD x 10" length for easy mounting
- Commonly available replacement filter cartridges

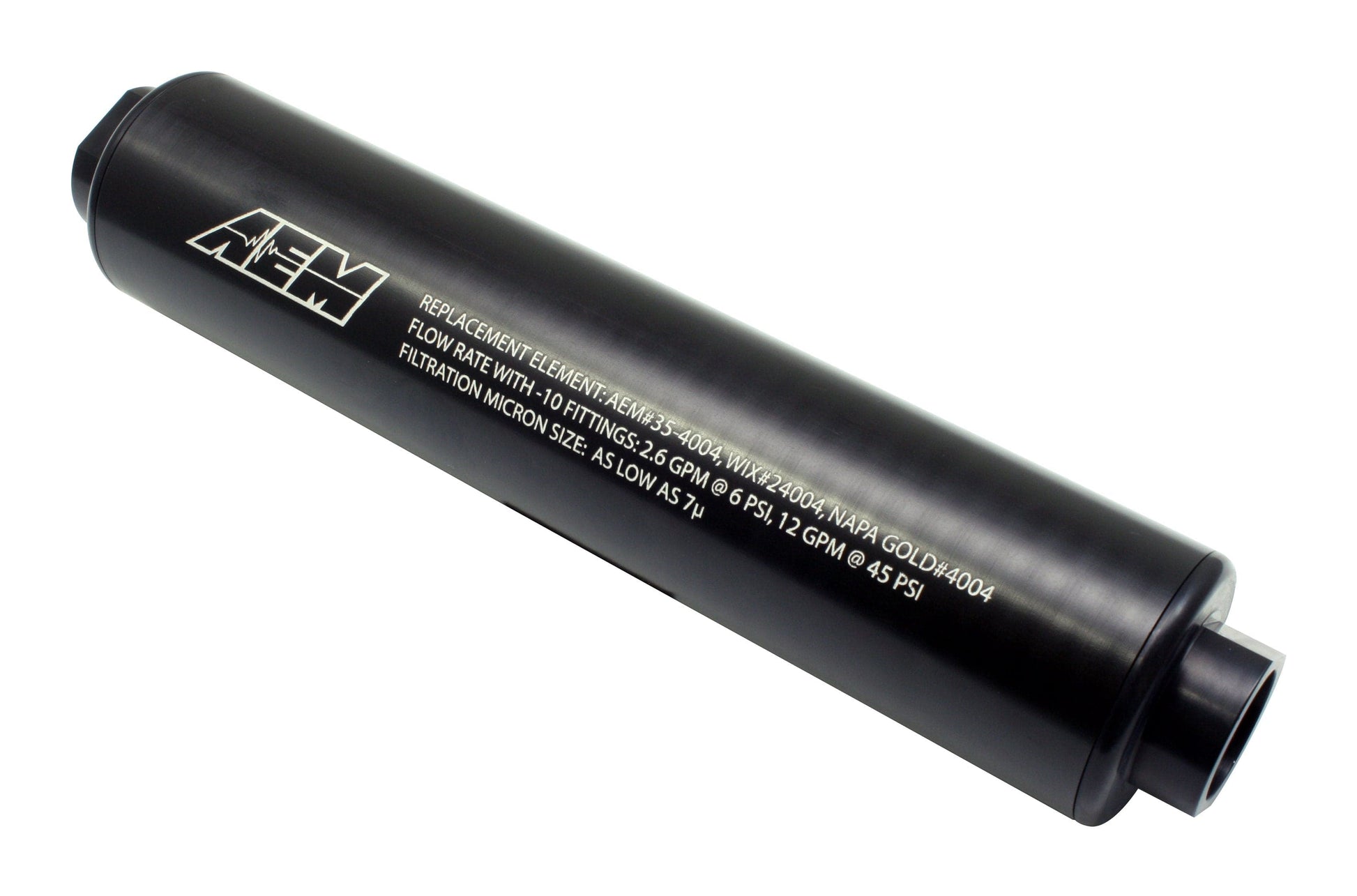

- Laser etched with AEM logo, flow and comes with filter replacement information
Specifications
Brand | AEM |
---|---|
Color | Black Anodized |
Diameter | 2.00 inch |
Element Material | Depth Media |
Emission Code | 5 |
Filter Type | Post Filter |
Fuel Type | Gasoline / Diesel / E85 |
Inlet Size | 10 AN O-ring |
Length | 10 inch |
Material | Aluminum |
Micron | 7 Micron |
Outlet Size | 10 AN O-ring |
Product Type | Fuel Filter |
Warranty | 1 Year |
UPC | 840879021528 |
Part Number | 25-201BK |
