034Motorsport Audi/VW Wheel Stud And Nut Kit, M14X1.5, R13 Ball

034Motorsport Audi/VW Wheel Stud And Nut Kit, M14X1.5, R13 Ball

Regular price $21.00
Regular price Sale price $21.00

Price Match
View full details

Description

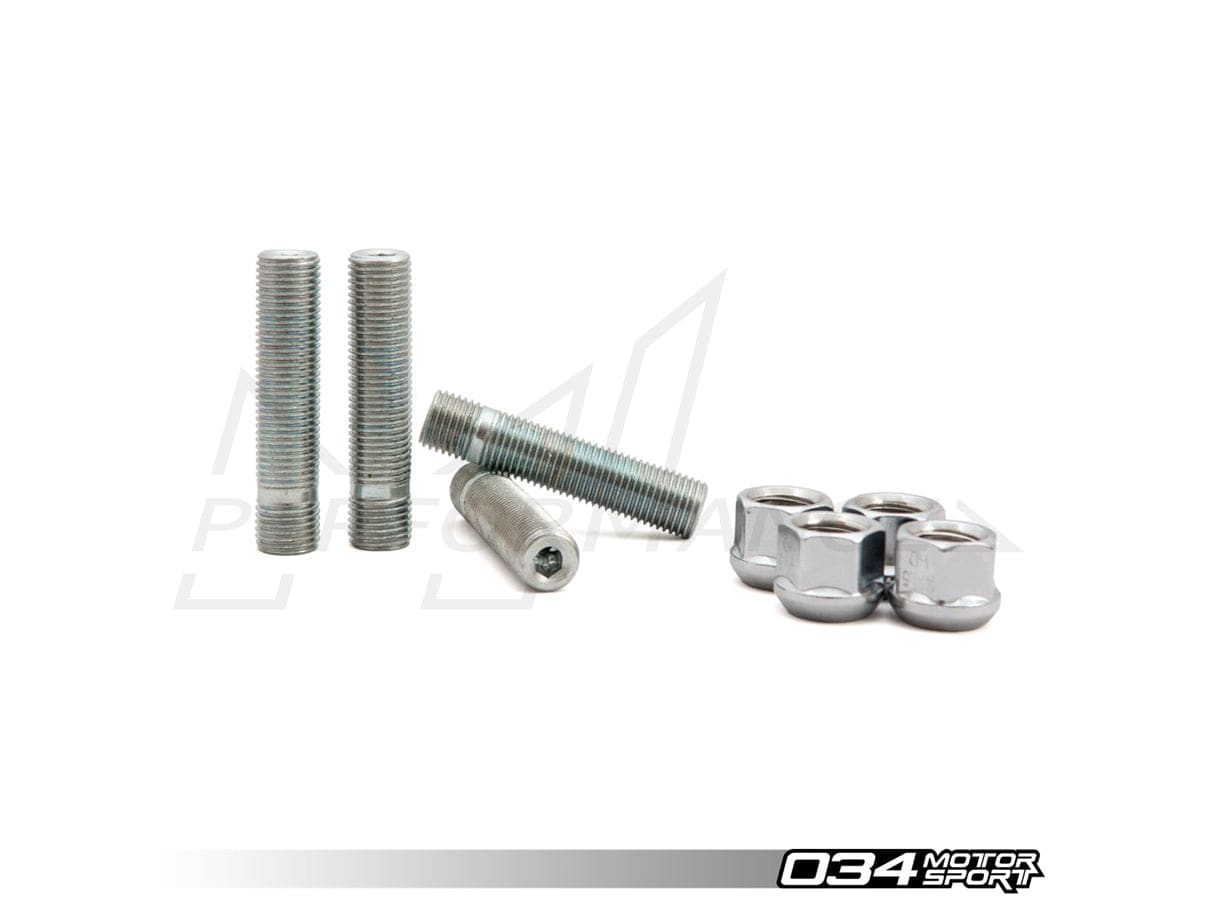

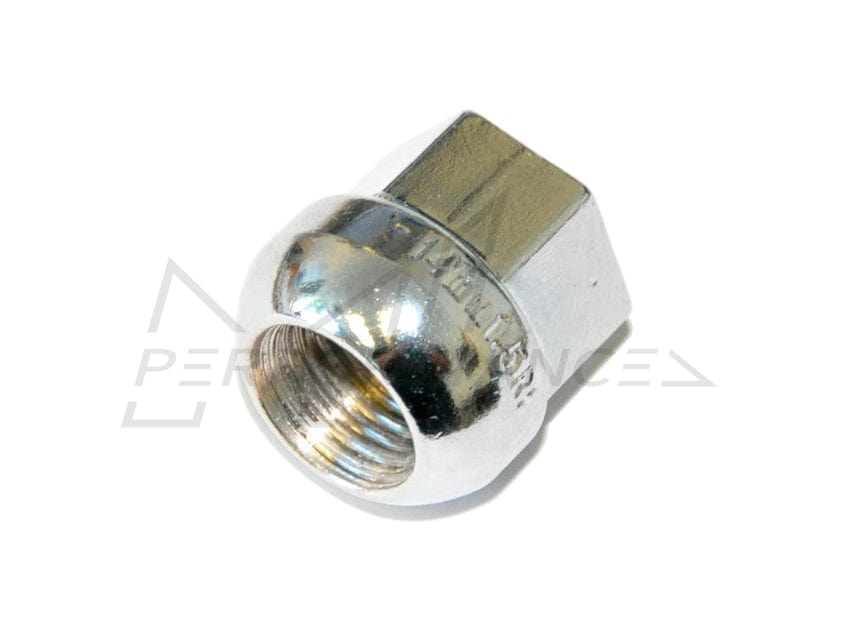

Wheel nut and stud combo, M14x1.5 threads, Metric Grade 8.8 with Zinc plating. Features R13 ball-seat wheel nuts meant for use with factory Audi/Volkswagen wheels.

Wrench head size of 19mm or 3/4", up from 17mm OEM size.



Available Lengths

  • 2" which we recommend for all applications w/o a spacer but also gives room for a thin 5mm spacer as well.
  • 2.5" which would accommodate a spacer up to 15mm safely
  • 3" are recommended for any spacer up to 25mm, but also for race cars where longer studs allow faster wheel changes and options for virtually any spacer configuration.



More Details

  • For 2.0" stud, lower threads are .45" (12mm) long, upper threads are 1.5" (38mm) long
  • For 2.5" stud, lower threads are .4" (10mm) long, upper threads are 1.7" (43mm) long
  • For 3.0" Stud, lower threads are  .46" (12mm) long, upper threads are 2.2" (56mm) long



Please Note

Allen provision is simply for convenient "hand threading" studs into hub, not for torquing. Final torque on threads is placed when nut is tightened.  034Motorsport is not responsible for stripped out Allen provisions due to improper use.



Priced per set of 4 studs and 4 nuts! A 4-bolt car will need a quantity of 4. A 5-bolt car will need a quantity 5.



Our wheel lock nut set (available in cone-seat only) is available separately.





Manufactured by

034Motorsport



Part Number

2 Inches 034-604-6001-200

2.5 Inches 034-604-6001-250

3 Inches 034-604-6001-300
