Description

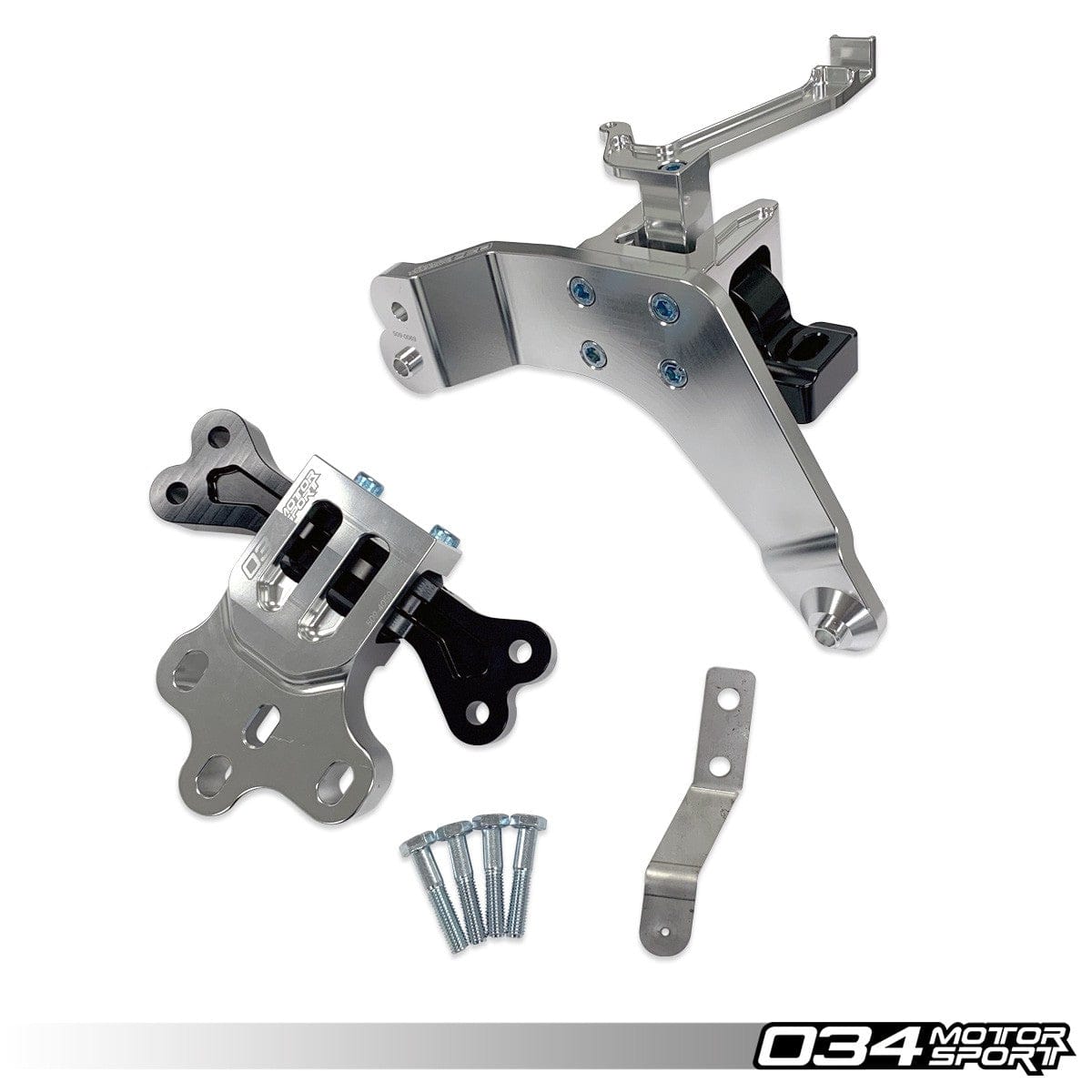

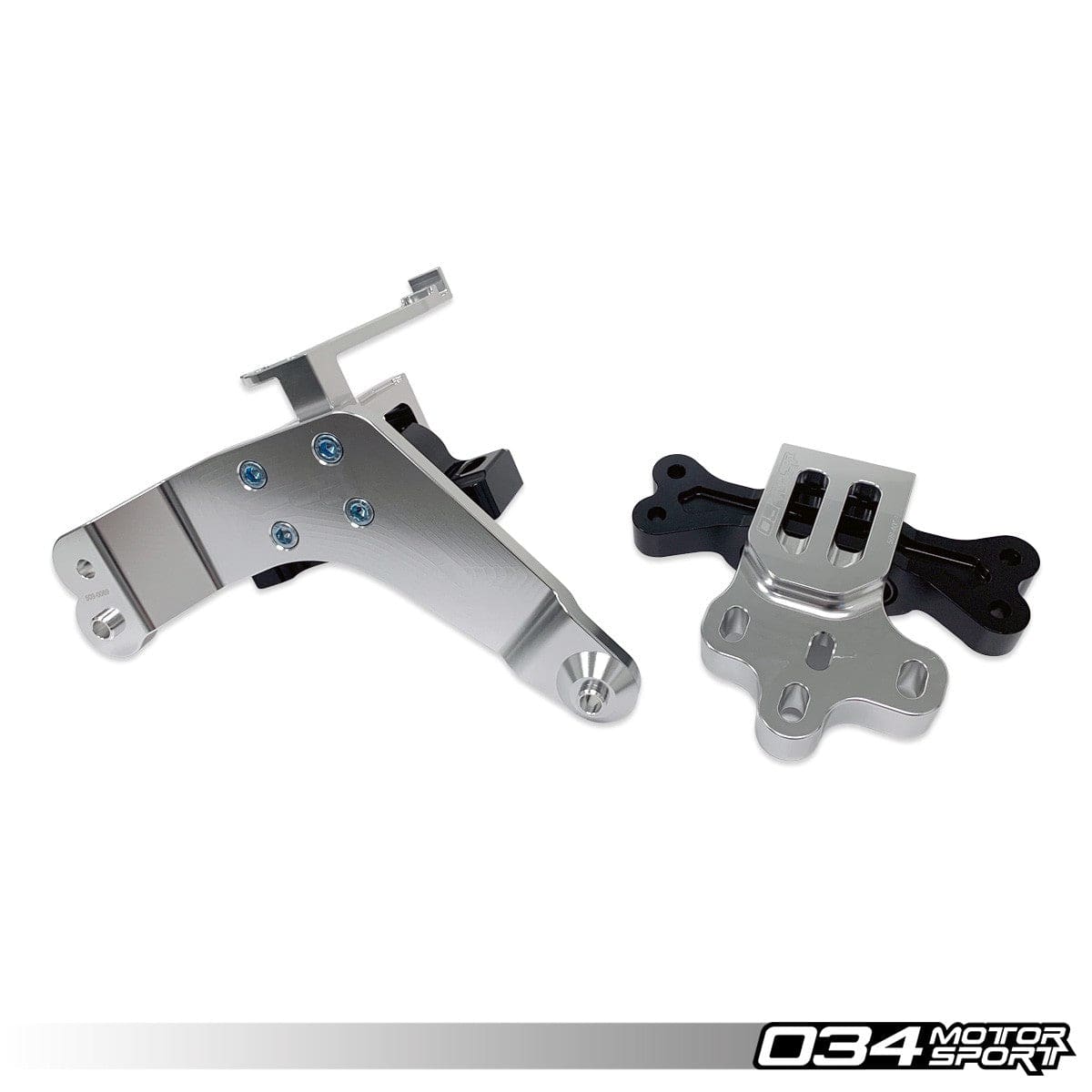

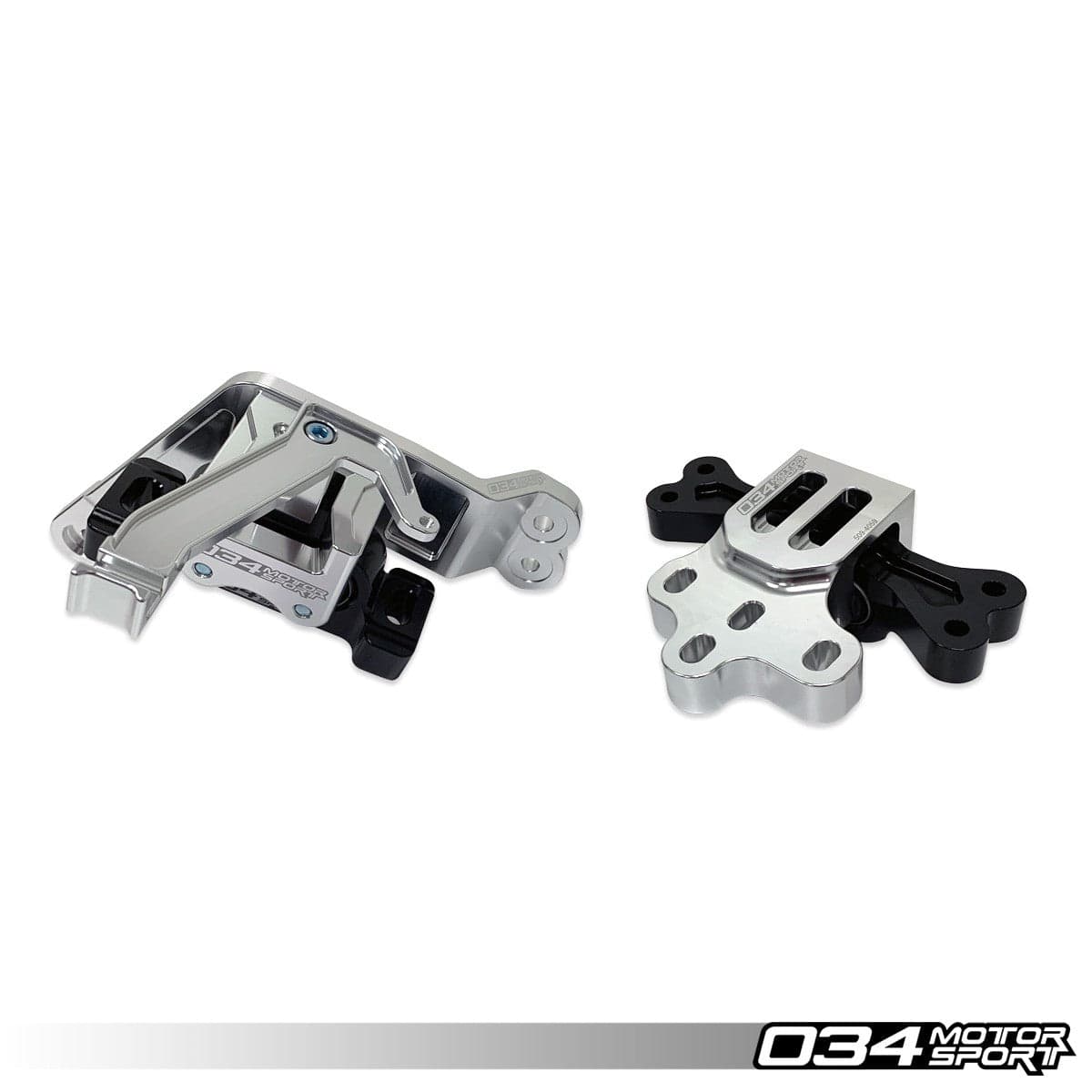

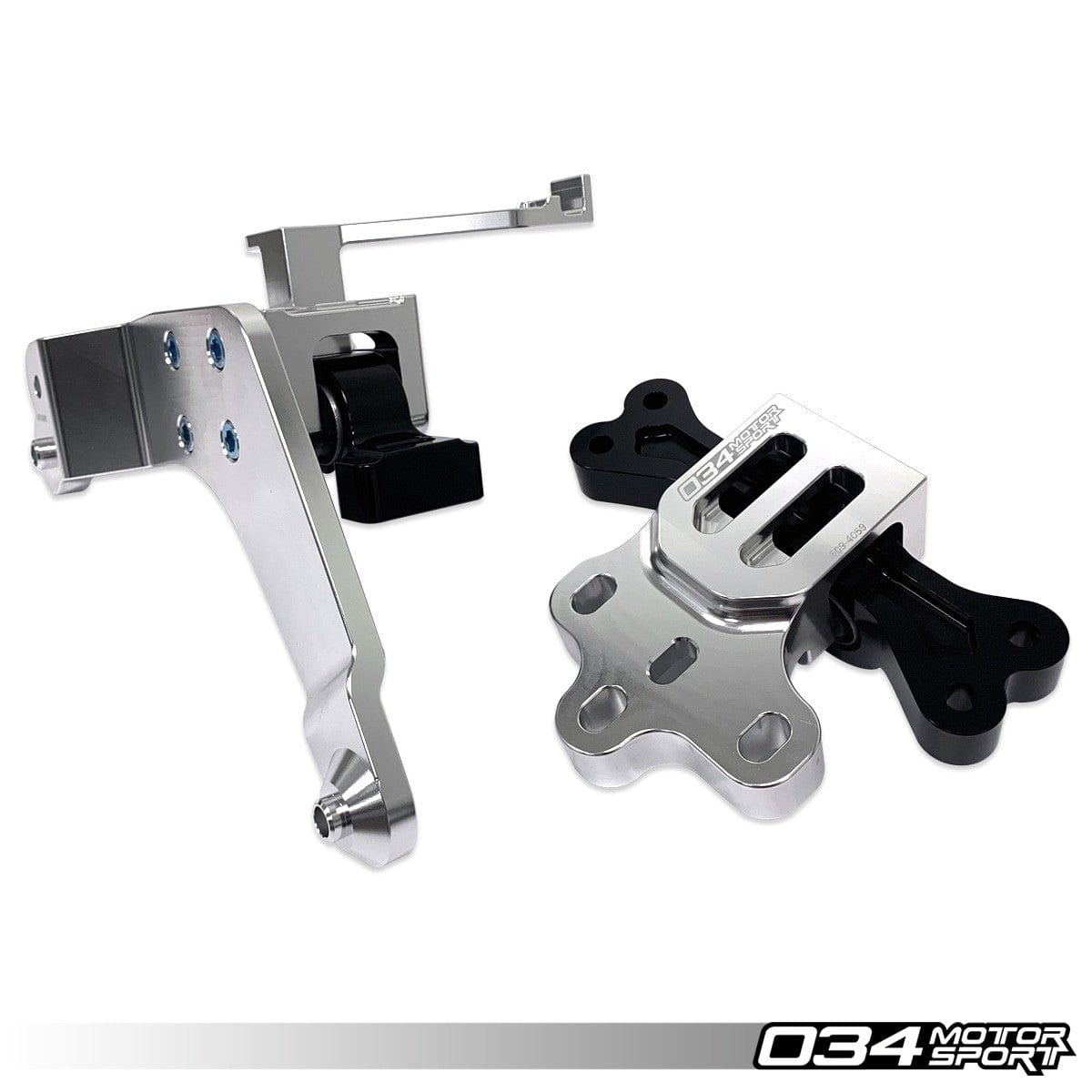

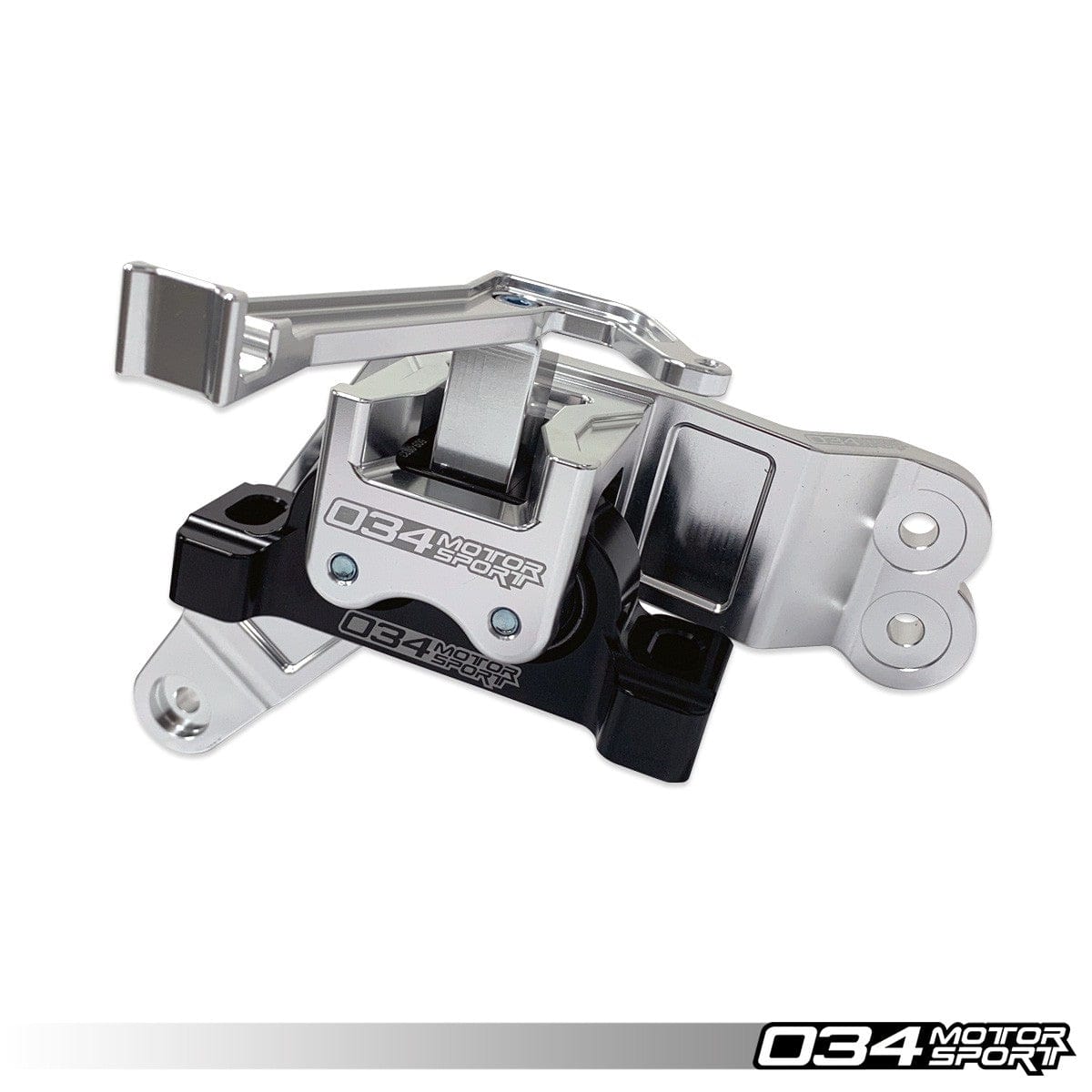

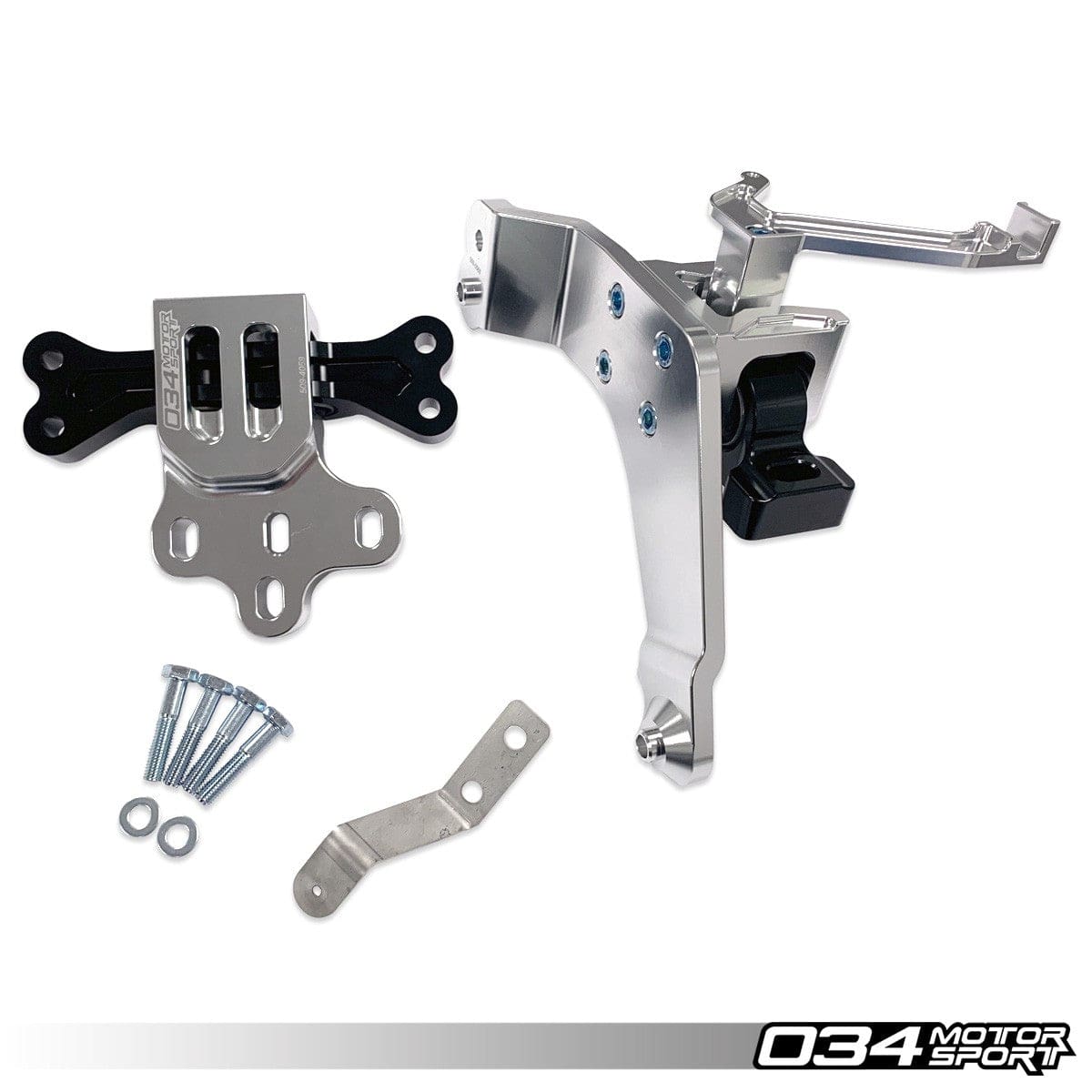

034Motorsport's Motorsport TrackSport Mounts for Audi 8S TTRS and 8V.5 RS3 models are the new standard in ultra-high performance. These mounts are designed with extreme performance in mind, manufactured from billet aluminum and high-durometer rubber, making them virtually indestructible, while maintaining better ride characteristics than polyurethane alternatives. These mounts have a lifetime guarantee regardless of power level applied and type of track racing they are used for.

Motorsport TrackSport Mounts are void-free and fluid-free, eliminating the slop associated with the factory engine/transmission mounts, and are designed to be completely rebuildable with replaceable Density Line rubber bushings. These extreme-duty mounts will increase noise, vibration, and harshness (NVH) transfer into the cabin, as they are designed to drastically reduce engine movement compared to the factory parts.

High-Durometer Rubber Vs. Polyurethane

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to increased complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings.

Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for applications that apply a shear force to the bushing during articulation. Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance.

Buyer's Guide

StreetSport

• Power levels exceeding Stage 1
• Car is launched or taken to HPDE or Drag events
• Car is used on road as a commuter
• Less NVH is desired

TrackSport

• Power levels exceeding conventional stages
• Car is heavily launched at drag strips or only used for track events
• Ultimate performance and rigidity is desired
• "Where we're going, we don't care about NVH!"

Features

• Manufactured from 6061-T6 Billet Aluminum
• Anodized for Long Life and Great Looks
• Extreme-Duty for the Most Punishing Racing and Extreme Performance Applications
• Great Solution for Highly-Tuned Stock Turbo and Big Turbo Power Levels
• Replaceable 65 Durometer Density Line Rubber Bushings with Void-Free Construction
• Virtually Indestructible
• Lifetime Warranty
• Reduced Drivetrain Slop
• Decreased Engine Movement Under Load
• More Direct Power Transfer
• Improved Shifting Feel
• Complete Drop-In Replacement of Factory Engine/Transmission Mounts
• Sold in Pairs

• Mounting hardware for motor-side mount is not included as the factory hardware can be reused.
• Lifetime warranty covers replacing Density Line rubber bushings should they ever wear out, and replacement of any billet aluminum component in the unlikely event of a failure.

Replaces

• Motor - 8V0199262B
• Transmission - 8V0199555A

RS3 BILLET ENGINE MOUNTS FIRST DRIVE & LAUNCH

Compatibility

• 2018-Present Audi TTRS 8S MQB 2.5TFSI EVO DAZA
• 2017-Present Audi RS3 8V/8V.5 MQB 2.5TFSI EVO DAZA

Please Note: We recommend having these mounts installed by an experienced mechanic. The installation process is the same as the factory mount remove and replace procedure.

Warranty

All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discoloration or cosmetic imperfections on carbon fiber finishes which occur over time.

Manufactured by

034Motorsport

Part Number

034-509-5030
