034Motorsport Audi P34 COLD AIR INTAKE, B9 A4/ALLROAD & A5 2.0 TFSI

$379.00 USD

~~$466.00 USD~~ $379.00 USD

BLACK FRIDAY Sold out

Product variants

Quantity

Description

034Motorsport's P34 Cold Air Intake System delivers improved power, sound, and acceleration to B9 Audi A4/Allroad & A5 owners in a clean OEM+ package.

Through extensive evaluation of the factory airbox design, 034Motorsport's engineers were able to create a performance replacement that allows for increased airflow to the turbocharger and engine. The P34 Air Intake System offers measurable performance improvements, simple bolt-on installation, and unsurpassed fit and finish.

034Motorsport is pleased to introduce the P34 Cold Air Intake System for B9 Audi A4/Allroad & A5!

Significant effort went into developing this comprehensive performance intake solution for the longitudinal EA888 2.0T Gen 3 engine found in the latest generation Audi A4/Allroad & A5. Subsequently, the P34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful airbox design.

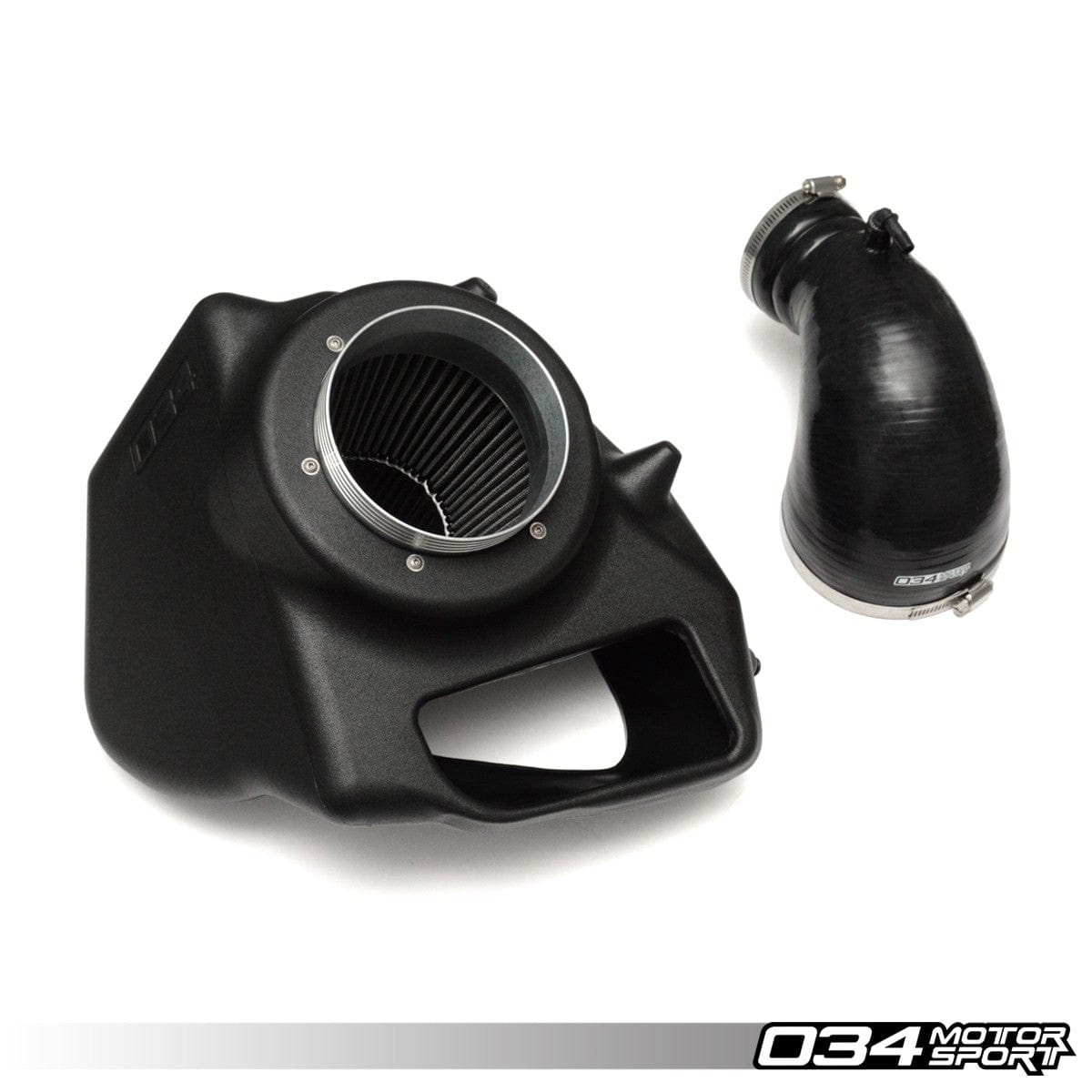

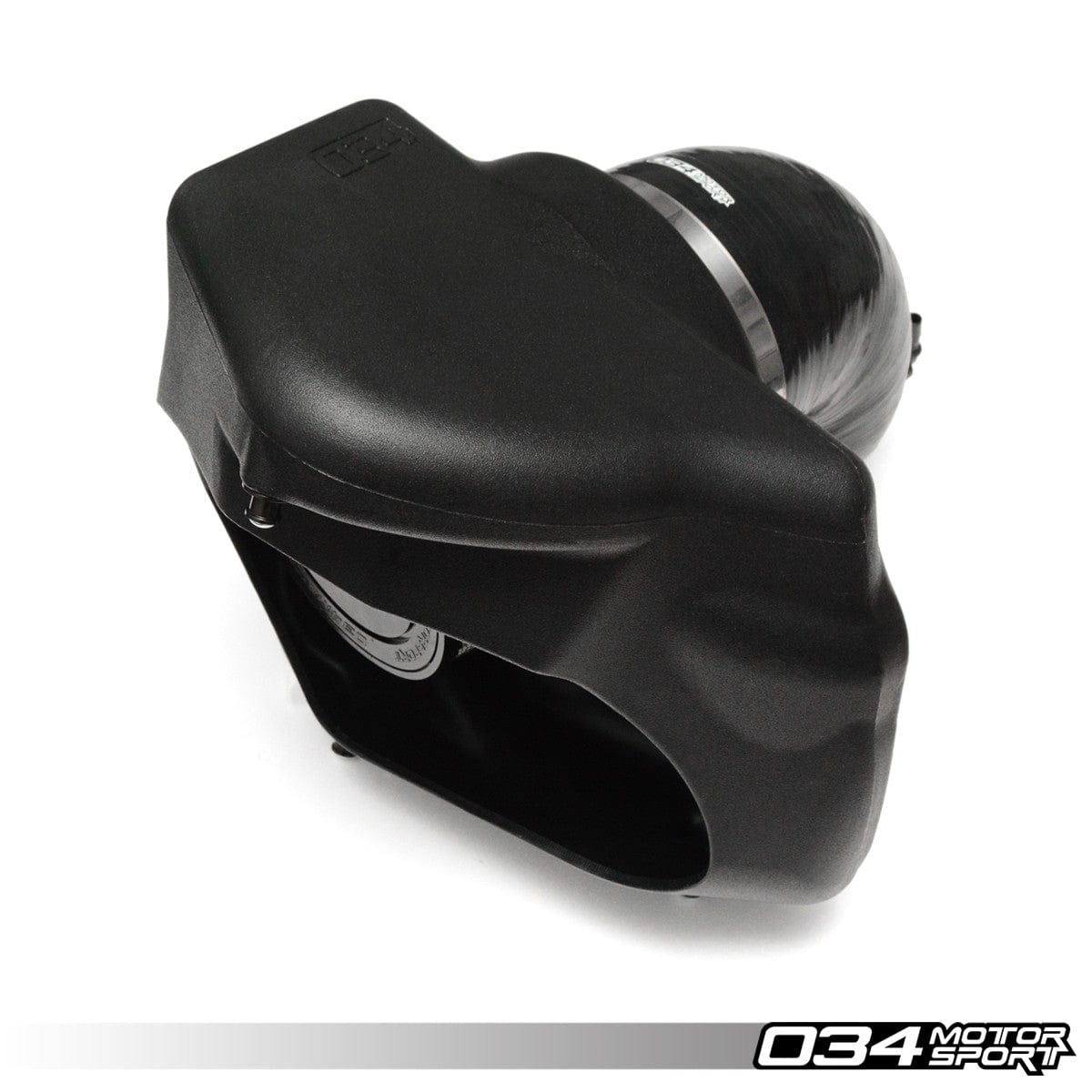

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the P34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a CNC-machined billet aluminum velocity stack feeding a reinforced silicone turbo inlet pipe.

Fitment Note

We recommend visually verifying your intake system to ensure that it does not have a MAF (mass airflow) sensor attached to the airbox. The 034Motorsport P34 Cold Air Intake is only for vehicles without a MAF attached directly to the factory airbox. Please see our visual guide for more details.

Features

Developed In-House by 034Motorsport's Engineering Team
Dyno-Proven Horsepower & Torque Gains
Increased Airflow to Turbocharger Inlet
Enhanced Engine & Induction Sounds
Improved Throttle Response
Superb Fit & Finish to Match Factory Engine Bay
Stealthy OEM+ Design Utilizes Factory Inlet & Heat Shield

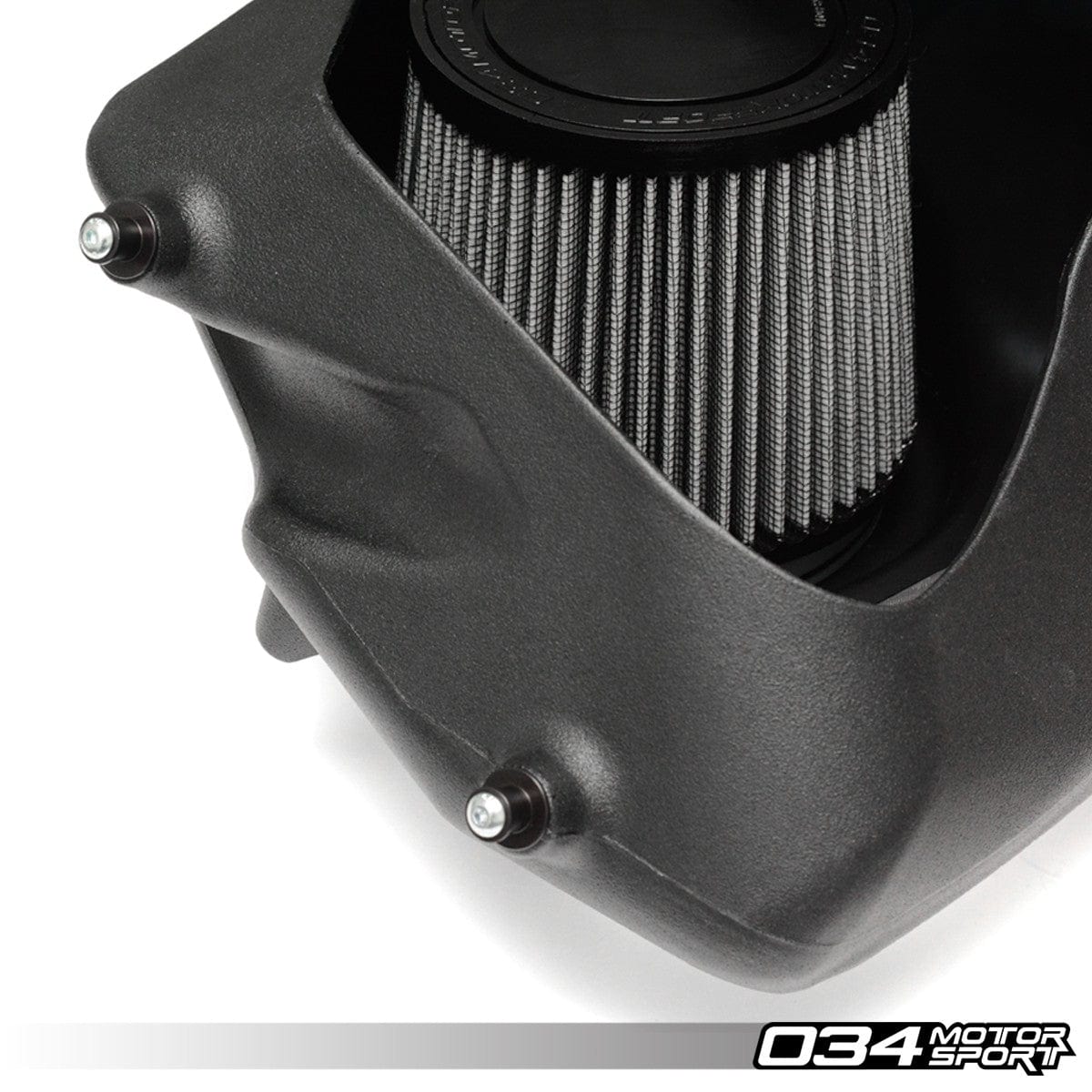

Massive 5" Inlet Conical Air Filter

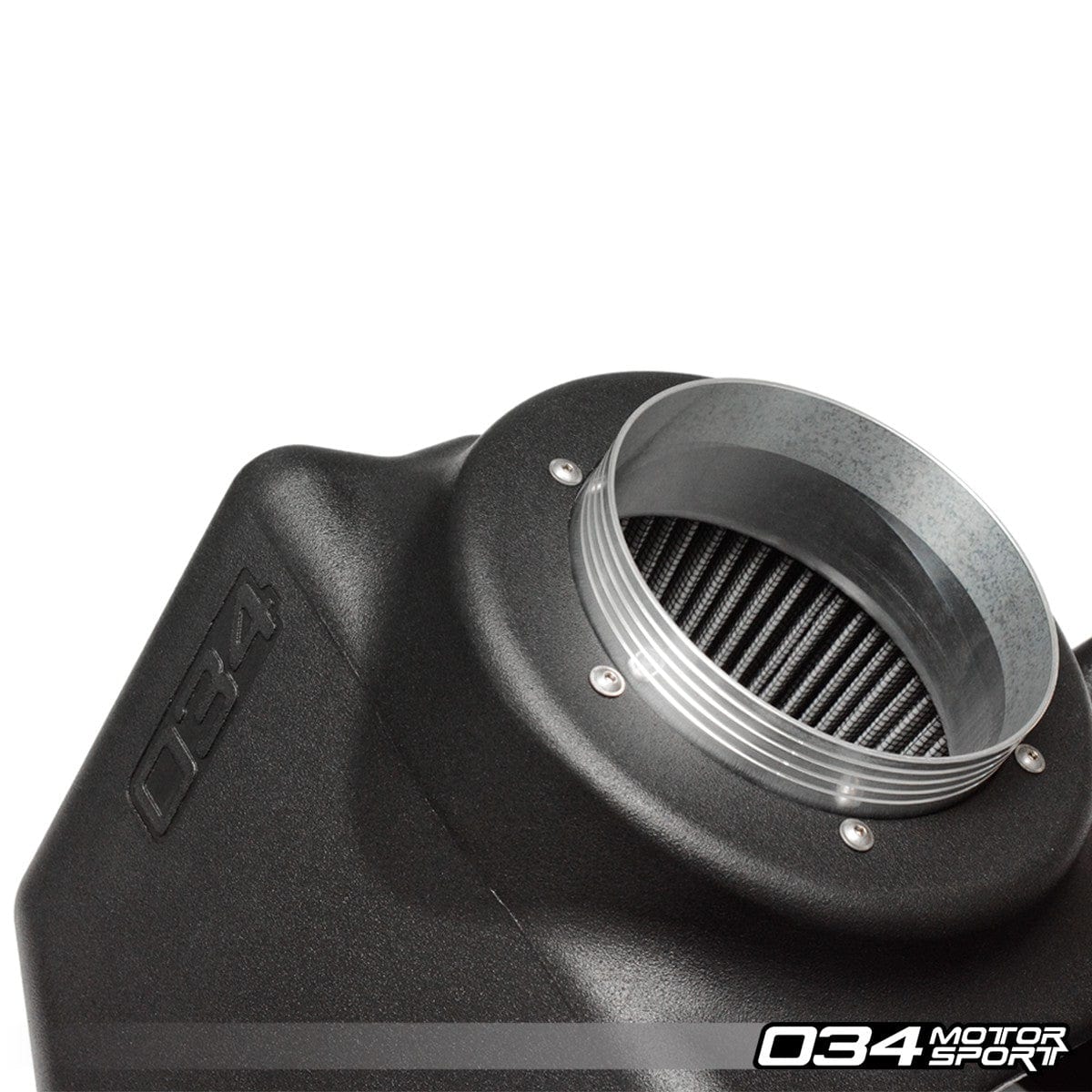

CNC-Machined Billet Aluminum Velocity Stack
Large-Diameter CFD-Optimized Turbo Inlet Hose
Securely Installs Using Factory Mounting Grommets
Simple, Straightforward Installation Instructions

DYNO-PROVEN PERFORMANCE GAINS

The P34 Cold Air Intake System for B9 Audi A4/Allroad & A5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the fruition of this design approach, the P34 Cold Air Intake System yields a measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

PEAK HORSEPOWER & TORQUE

Stock Intake: 253 Horsepower / 270 Foot-Pounds of Torque
P34 Intake: 262 Horsepower / 274 Foot-Pounds of Torque

PEAK GAINS IN HORSEPOWER & TORQUE

Peak Horsepower Gain: 10 HP @ 6,100 RPM
Peak Torque Gain: 8 FT-LBS @ 6,100 RPM

PRESSURE DROP REDUCTION

Stock Intake: Peak Pressure Drop of 0.58 PSI at 6,300 RPM
P34 Intake: Peak Pressure Drop of 0.10 PSI at 6,300 RPM

P34 COLD AIR INTAKE SYSTEM PERFORMANCE DATA

	FACTORY B9 AUDI A4/A5 AIRBOX	P34 COLD AIR INTAKE SYSTEM
Peak Horsepower	253 HP	262 HP
Peak Torque	270 FT-LBS	274 FT-LBS
Peak Horsepower Gains		10 HP @ 6,200 RPM
Peak Torque Gains		8 FT-LBS @ 6,200 RPM
Peak Pressure Drop at Turbo Inlet	0.58 PSI	0.10 PSI
Peak Pressure Drop Reduction		0.48 PSI @ 6,300 RPM
